ESKE/1S-e 32

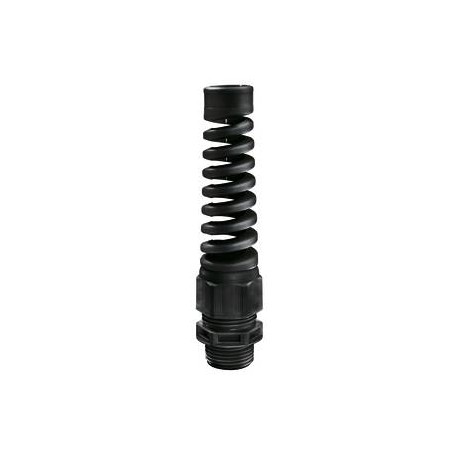

ESKE/1S-e 32 10103497 WISKA Black PA cable glands "ATEX" IP68, ent. Protec. flexible, increased sec., range ..
$0.00USD
4880 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKE/1S-e 32
Equipment (Features):Incl. connection thread gasket
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKE/1S-e 32 |
| Equipment (Features) | Incl. connection thread gasket |
| Thread type (Features) | M |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 10 |
| Product Color (Features) | RAL 9005 |
| Ex-Certificate (Features) | IECEx, ATEX |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 138 mm - 147 mm |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Order no. RAL 9005 (Features) | 10103497 |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 40 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter max (Features) | 21 mm |
| Ø cable diameter min (Features) | 13 mm |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 3 N m |
| Install. torques fitting (Features) | 4,5 N m |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Ex-cable gland, polyamide with flex protection, RAL 9005, M32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
