ESKE/1-e 63

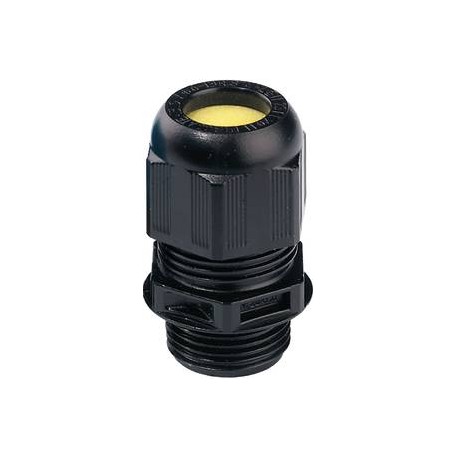

ESKE/1-e 63 10103370 WISKA BLACK PA cable glands "ATEX" IP68, increased security, range from 34 to 48mm, thr..
$0.00USD
4482 in stock
Key Specifications
Lead (Features):1,5
Type (Features):ESKE/1-e 63
Equipment (Features):Incl. connection thread gasket
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | ESKE/1-e 63 |
| Equipment (Features) | Incl. connection thread gasket |
| Thread type (Features) | M |
| Key width SW (Features) | 68 mm |
| Packing unit (Features) | 1 |
| Product Color (Features) | RAL 9005 |
| Ex-Certificate (Features) | IECEx, ATEX |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 64 mm - 78 mm |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Order no. RAL 9005 (Features) | 10103370 |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 75 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter max (Features) | 48 mm |
| Ø cable diameter min (Features) | 34 mm |
| Ø Connection thread D (Features) | 63 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 16 N m |
| Install. torques fitting (Features) | 17 N m |
| Length screw-in thread L (Features) | 15 mm |
Product Description
Ex-cable gland, polyamide with short thread, RAL 9005, M63
