EQ34W

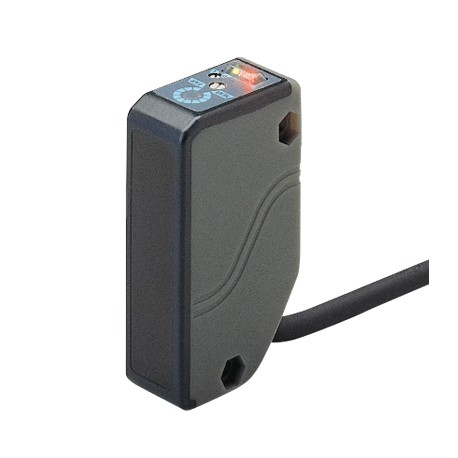

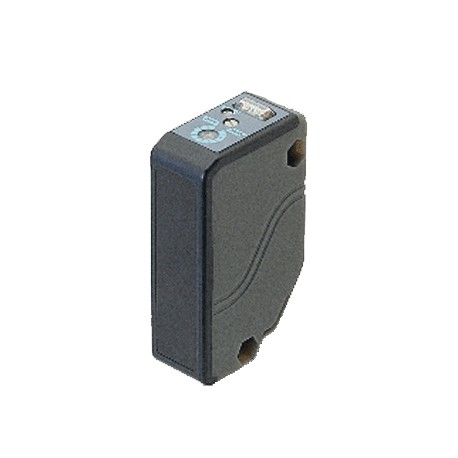

EQ34W EQ-34W PANASONIC *UZD352*, Trigonometric diffuse reflective type, 2m, NPN, cable 2m
$0.00USD
3078 in stock
Key Specifications
Item:Specifications
Cable:0.3 mm24-core cabtyre cable, 2 m6.562 ftlong
Output:NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)
Weight:Net weight: 150 g approxGross weight: 200 g approx
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.3 mm24-core cabtyre cable, 2 m6.562 ftlong |
| Output | NPN open-collector transistor- Maximum sink current: 100 mA- Applied voltage: 30 V DC or less (between output and 0 V)- Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) |
| Weight | Net weight: 150 g approxGross weight: 200 g approx |
| Details | Two outputs |
| Product | Adjustable Range Reflective Photoelectric Sensor |
| Material | Enclosure: Polyalylate and Polyethylene terephthalateLens: Polyalylate |
| Accessory | Adjusting screwdriver: 1 pc. |
| Hysteresis | 10 % or less of operation distance (With white non-glossy paper) |
| Protection | IP67 (IEC) |
| Part Number | EQ-34W |
| Product name | Adjustable Range Reflective Photoelectric Sensor EQ-30 |
| Repeatability | Along sensing axis: 10 mm0.394 inor less, Perpendicular to sensing axis: 1 mm0.039 inor less (with white non-glossy paper) |
| Response time | 2 ms or less |
| Product Number | EQ-34W |
| Supply voltage | 10 to 30 V DC Ripple P-P 10 % or less |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Adjustable range | Far (Main): 0.2 to 2 m0.656 to 6.562 ftNear (Sub): Refer to diagram in(Note) The adjustable range stands for the maximum sensing range which can be set with the adjuster.The sensor can detect an object 0.1 m0.328 ft, or more, away.However, the detectable area of the Near (Sub) type of the EQ-34W begins at 0.2 m0.656 ft. |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Emitting element | Infrared LED (Peak emission wavelength: 880 nm0.035 mil, modulated) |
| Pollution degree | 3 (Industrial environment) |
| Shock resistance | 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each |
| Distance adjuster | Far (Main): 2-turn mechanical adjuster with pointerNear (Sub): Variable adjuster |
| Ambient illuminance | Incandescent light: 3,000 ℓx or less at the light-receiving face |
| Ambient temperature | -20 to +55 ℃-4 to +131 ℉(No dew condensation or icing allowed), Storage: -25 to +70 ℃-13 to +158 ℉ |
| Current consumption | 90 mA or less |
| Operation indicator | Far (Main) output: Red LED [lights up when the Far (Main) output is ON]Near (Sub) output: Red LED [lights up when the Near (Sub) output is ON] |
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
| Vibration resistance | 10 to 55 Hz frequency, 1.5 mm0.059 indouble amplitude (10 G max.) in X, Y and Z directions for two hours each |
| Insulation resistance | 20 MOhm , or more, with 250 V megger between all supply terminals connected together and enclosure |
| Output:Output operation | Switchable either Detection-ON or Detection-OFF |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Output:Utilization category | DC-12 or DC-13 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Output:Short-circuit protection | Incorporated |
| Automatic Interference prevention function | Incorporated(Note) Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects. |
| Sensing range(with white non-glossy paper at setting distance 2 m 6.562 ft) | Far (Main): 0.2 to 2 m0.656 to 6.562 ftNear (Sub): Refer to diagram in(Note)Detection may become unstable depending on the setting conditions or the sensing objects. After setting up this product, make sure to check operations using actual sensing objects. |
