In Stock Hot Product
EPS-65-15-C

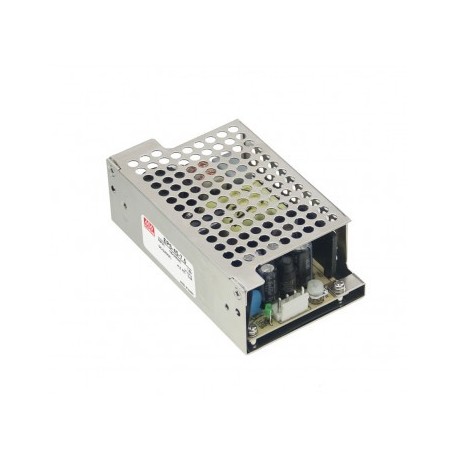

EPS-65-15-C MEANWELL AC-DC Single output Enclosed power supply, Output 15VDC / 4.34A, case included
$0.00USD
3570 in stock
Key Specifications
Name:EPS-65-15-C
Format:Box
Series:EPS-65-C
Approvals:CE, UL
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | EPS-65-15-C |
| Format | Box |
| Series | EPS-65-C |
| Approvals | CE, UL |
| Power (W) | 65,10 |
| Subformato | Grid |
| Width (mm) | 62.00 |
| Height (mm) | 37.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 15,00 |
| Peak Power (W) | Seventy two |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 103.40 |
| Long Description | Power supply in the format box of regilla.Range of universal Input90-264vac47-63Hz.Output voltage15vdc.Output intensity4,34 To. Range of output current 0-4,34 according To the demand load.Power:65,1 W.Peak power72W10 seconds (duty cycle of 33% every 30 seconds. The average power cannot exceed the power of the computer).Consumption without load <0,3 W.Efficiency typical:87%.Temperature range operating case Tc from-30up+70ºC.Dimensions (Length x Width x Height) [mm]:103,4 x 62 x 37.3 years of warranty.Manufacturer: MEAN WELL.Series EPS-65 power supply compact size high efficiency, low energy consumption, no-load and low noise and ripple. Designed for industrial applications and telecommunications. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in the format box of regilla.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
