EPS-45S-48

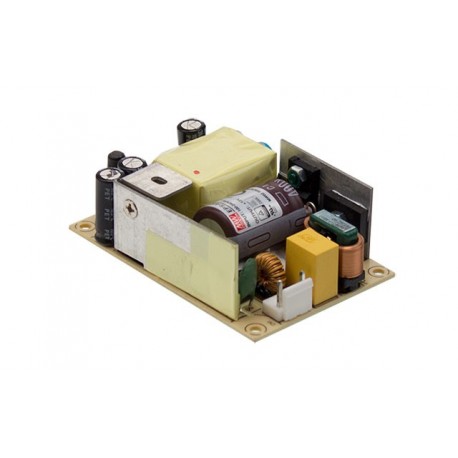

EPS-45S-48 MEANWELL AC-DC Single output Open frame power supply, Output 48VDC / 1A, 1U low profile, 3"x2" mi..
$0.00USD
3734 in stock
Key Specifications
Fan:Yes
Name:EPS-45S-48
State:Recommended Model
Format:Open Format
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | EPS-45S-48 |
| State | Recommended Model |
| Format | Open Format |
| Series | EPS-45S |
| Approvals | CE, UL |
| Power (W) | 45,10 |
| Subformato | 3"x2" |
| Width (mm) | 50.8 |
| Height (mm) | Twenty four |
| AC input Max | 264,00 |
| AC input Min | 80,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 48,00 |
| Peak Power (W) | 49.4 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 76.2 |
| Long Description | Power supply in an Open Format(Open-Frame).Range of universal Input80-264vac47-63Hz.Output voltage48vdc.Output intensity0,94 To. Range of output current 0-1A according to demand load.Power:45,1 W.Peak power49,4 W10 seconds (duty cycle of 33% every 30 seconds. The average power cannot exceed the power of the computer).Consumption without load <0,3 W.Efficiency typical:91%.Temperature range operating case Tc from-30up+70ºC.Dimensions (Length x Width x Height) [mm]:76.2 x 50.8 x 24.3 years of warranty.Manufacturer: MEAN WELL.Series EPS-45S are the power sources in a compact size of 2" x 3", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications and telecommunications. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
