In Stock Hot Product
EPS-25-36

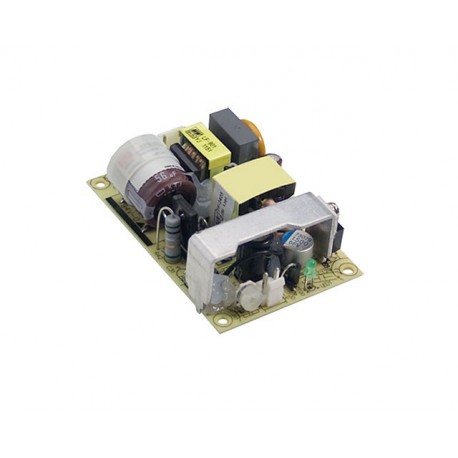

EPS-25-36 MEANWELL AC-DC Single output Open frame power supply, Output 36VDC / 0.7A
$10.69USD
970 in stock
Key Specifications
Name:EPS-25-36
State:Recommended Model
Format:Open Format
Series:EPS-25
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | EPS-25-36 |
| State | Recommended Model |
| Format | Open Format |
| Series | EPS-25 |
| Approvals | CE, UL |
| Power (W) | 25,20 |
| Subformato | 3"x2" |
| Width (mm) | 50.80 |
| Height (mm) | 24.00 |
| AC input Max | 264,00 |
| AC input Min | 85,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 36,00 |
| Peak Power (W) | Twenty eight |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 76.20 |
| Long Description | Power supply in an Open Format(Open-Frame).Range of universal Input85-264vac47-63Hz.Output voltage36Vcc.Output intensity0.7 To. Range of output current 0-0,7 according To the demand load.Power:25,2 W.Peak power28W10 seconds (duty cycle of 33% every 30 seconds. The average power cannot exceed the power of the computer).Consumption without load <0,3 W.Efficiency typical:89%.Temperature range operating case Tc from-30up+70ºC.Dimensions (Length x Width x Height) [mm]:76.2 x 50.8 x 24.3 years of warranty.Manufacturer: MEAN WELL.Series EPS-25, are the sources of power in compact size 3x2", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications and telecommunications. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an Open Format(Open-Frame).
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
