EPP-300-48

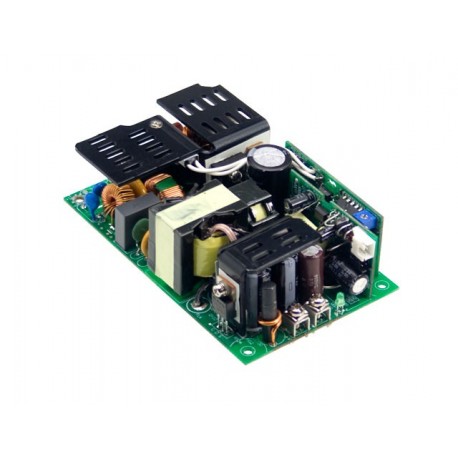

EPP-300-48 MEANWELL AC-DC Single output Open frame power supply, Output 48VDC / 6,25A
$51.91USD
232 in stock
Key Specifications
Name:EPP-300-48
State:Recommended Model
Alarms:Powerfail, Output OK
Format:Open Format
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | EPP-300-48 |
| State | Recommended Model |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | EPP-300 |
| Approvals | CE, UL |
| Power (W) | 200,20 |
| Subformato | 5"x3" |
| Width (mm) | 76.20 |
| Height (mm) | 35.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 48,00 |
| Peak Power (W) | Three hundred |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 127.00 |
| Long Description | Power supply in an open format(Open-Frame)with PFC function.Range of universal Input90-264vac47-63Hz.Output voltage48vdc.Adjustable by potentiometer (45,6-50,4 Vdc).Output intensity4,17 without fanand6,25 with fanexternal 20.5 CFM.Power:200,2 Wwithout fanand300W, with fanexternal.Efficiency typical:93%.Factor corrector, power>0,93to 230vac at full load.Operating temperature range from-30up+70ºC.Meets class B EMI, Electromagnetic Immunity, both systems of class I (with ground) class II (without grounding).Dimensions (Length x Width x Height) [mm]:127 x 76.2 x 35.3 years of warranty.Manufacturer: MEAN WELL.The series EPP-300 are power sources in a compact size of 5" x 3", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications, automation, control systems, mechanical equipment, and electro-mechanical, instrumentation, and telecommunications equipment. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame)with PFC function.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
