In Stock Hot Product
EPP-150-27

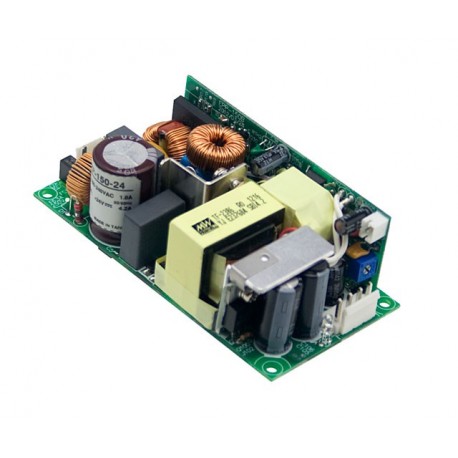

EPP-150-27 MEANWELL AC-DC Single output Open frame power supply, Output 27VDC / 3.71A
$37.52USD
299 in stock
Key Specifications
Name:EPP-150-27
State:Recommended Model
Alarms:Powerfail, Output OK
Format:Open Format
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | EPP-150-27 |
| State | Recommended Model |
| Alarms | Powerfail, Output OK |
| Format | Open Format |
| Series | EPP-150 |
| Approvals | CE, UL |
| Power (W) | 100,10 |
| Subformato | 4"x2" |
| Width (mm) | 50.80 |
| Height (mm) | 29.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 27,00 |
| Peak Power (W) | 150.1 |
| Input connector | Plug-in |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 101.60 |
| Long Description | Power supply in an open format(Open-Frame)with PFC function.Range of universal Input90-264vac47-63Hz.Output voltage27Vcc.Adjustable by potentiometer (26,4-28,3 Vdc).Output intensity3,71 without fanand5,56 with fanexternal of 20 CFM.Power:100,1 Wwithout fanand150,1 W with fanexternal.Efficiency typical:92%.Factor corrector, power>0,95to 230vac at full load.Operating temperature range from-30up+70ºC.Meets class B EMI, Electromagnetic Immunity, both systems of class I (with ground) class II (without grounding).Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29.3 years of warranty.Manufacturer: MEAN WELL.The series EPP-150 are power sources in compact size of 4" x 2", high efficiency, low consumption without load, and low noise and ripple. Designed for industrial applications, automation, control systems, mechanical equipment, and electro-mechanical, instrumentation, and telecommunications equipment. |
| Output connector | Plug-in |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply in an open format(Open-Frame)with PFC function.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
