EP252M40

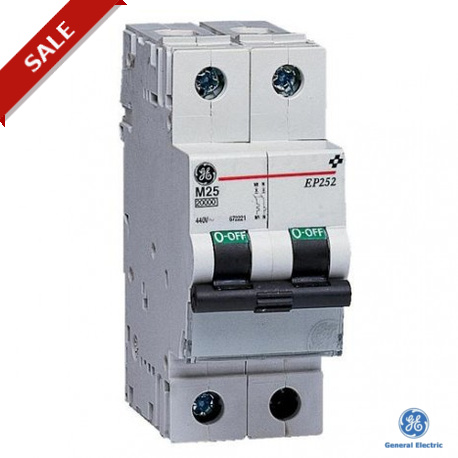

EP252M40 672223 GENERAL ELECTRIC Miniature circuit breaker EP250M 2P 40A
$0.00USD
4848 in stock
Key Specifications
AC/DC:AC
Group:ElfaPlus
Range:Commercial - Industrial
Family:Circuit protection
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AC/DC | AC |
| Group | ElfaPlus |
| Range | Commercial - Industrial |
| Family | Circuit protection |
| In (A) | 40 |
| Switch | EP250 : 15-50kA |
| Approvals | CE |
| Standards | 15-50kA industrial BS EN 60947-2 |
| Curve Type | M (12.5 In) |
| Rated voltage | 240 V / 415 V |
| Number of poles | 2P |
| Tropicalisation | 95%RH at 55°C |
| Connections- Top | Screw |
| Standard packing | 6 |
| Number of modules | 2 |
| Selectivity class | 3 |
| Connections- Bottom | Screw |
| ETIM 5.0 (DIMENSIONS) | EC000042 |
| ETIM 6.0 (DIMENSIONS) | EC000042 |
| Operating temperature | -25°C / 55°C |
| Electrical service life | 20000/10000 |
| Weight (SPECIFICATIONS) | 0.25 kg |
| Short-circuit capacity (kA) | 40 / 20 |
| Terminal capacity max (mm²) | 25-35 mm² |
| Terminal capacity min (mm²) | 0.75 / 1 mm² |
| Minimum operating voltage Ubmin (V) | 12 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
