EP103Z08

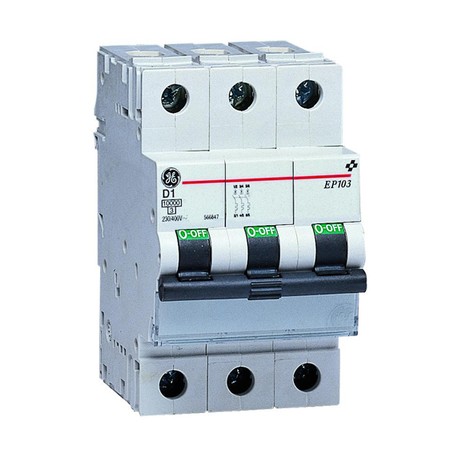

EP103Z08 682814 GENERAL ELECTRIC Circuit breaker EP100 3P 8A Z /GE PE
$0.00USD
3087 in stock
Key Specifications
Logo:GE
AC/DC:AC
Group:ElfaPlus
Range:Commercial - Industrial
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Logo | GE |
| AC/DC | AC |
| Group | ElfaPlus |
| Range | Commercial - Industrial |
| Family | Circuit protection |
| In (A) | 8 |
| Switch | EP100 : 10kA |
| Category | MCB DIN-rail |
| ETIM 6.0 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 7.0 | EC000042 - Miniature circuit breaker (MCB) |
| Approvals | CE |
| Standards | 10kA industrial EN 60947-2 |
| Curve Type | Z (2-3 In) |
| Rated voltage | 415 |
| Number of poles | 3P |
| Tropicalisation | 95%RH at 55ºC |
| Connections- Top | Screw |
| Standard packing | 4 |
| Number of modules | 3 |
| Selectivity class | 3 |
| Connections- Bottom | Screw |
| Short-circuit capacity (kA) | 10 |
| Terminal capacity max (mm²) | 50 |
| Terminal capacity min (mm²) | 35 |
| Short circuit capacity (EN/IEC 60947-2) | 10 |
Product Description
MCB EP100 3P 8A Z /GE PE
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
