EP101UCC3

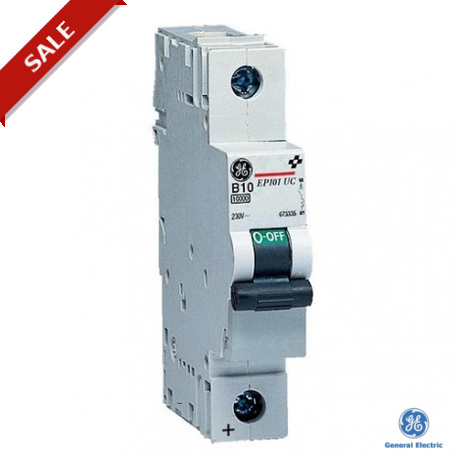

EP101UCC03 673304 GENERAL ELECTRIC Miniature circuit breaker EP100UC 1P 3A C
$0.00USD
4929 in stock
Key Specifications
AC/DC:AC/DC
Group:ElfaPlus
Range:Commercial - Industrial
Family:Circuit protection
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AC/DC | AC/DC |
| Group | ElfaPlus |
| Range | Commercial - Industrial |
| Family | Circuit protection |
| In (A) | 3 |
| Switch | EP100 UC : 6kA - AC/DC |
| Approvals | CE;VDE |
| Standards | 10kA industrial BS EN 60947-2;6kA domestic BS EN 60898 |
| Curve Type | C (5-10 In) |
| Rated voltage | 230 V / 400 V |
| Number of poles | 1P |
| Tropicalisation | 95%RH at 55°C |
| Connections- Top | Screw |
| Standard packing | 12 |
| Number of modules | 1 |
| Selectivity class | 3 |
| Connections- Bottom | Screw |
| ETIM 5.0 (DIMENSIONS) | EC000042 |
| ETIM 6.0 (DIMENSIONS) | EC000042 |
| Operating temperature | -25°C / 55°C |
| Electrical service life | 20000/1000 |
| Weight (SPECIFICATIONS) | 0.125 kg |
| Short-circuit capacity (kA) | 6 |
| Terminal capacity max (mm²) | 25-35 mm² |
| Terminal capacity min (mm²) | 0.75 / 1 mm² |
| Minimum operating voltage Ubmin (V) | 12 V |
Product Description
EP101UCC3
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
