In Stock Hot Product
EOSWA-W-EO

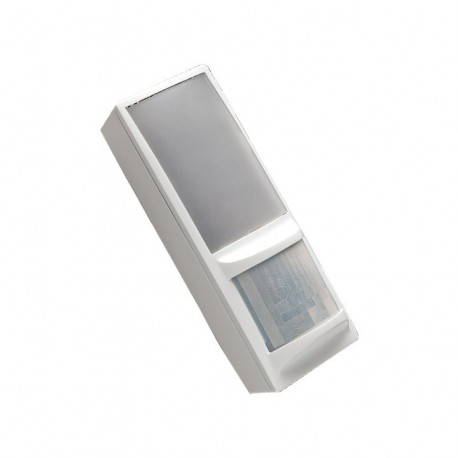

EOSWA-W-EO MEANWELL Wall-mount motion sensor for EnOcean
$0.00USD
4490 in stock
Key Specifications
Name:EOSWA-W-EO
Stock:Yes
Format:Box
Series:EOSWA-W-EO
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | EOSWA-W-EO |
| Stock | Yes |
| Format | Box |
| Series | EOSWA-W-EO |
| Subformato | IP20 |
| Width (mm) | 64.00 |
| Height (mm) | 45.00 |
| Manufacturer | MEAN WELL |
| Product type | Sensor of Presence |
| Long/Background | 148.00 |
| Long Description | Sensor of presence wireless.Accessory wall for presence control protocols EnOcean.The fonts LCM-EO can integrate various sensors in the system EnOcean: presence sensors, lighting, remote controls, etc, This occupancy sensor or presence mounts on the wall, is wireless and self-powered, which makes it one of the devices more cost-effective. Two cellssolar integrated allow the accumulation of energy from indoor light to power the deviceand uses radio frequency technology to communicate wirelessly with other-enabled devices on the EnOcean protocol. PIR motion Sensor with options of wide angle and long range for maximum efficiency and felixibilidad in different environments.Set-off and electrical loads when it detects that a space has been unoccupied for a period of time.RF communications: 868.ToRF communications: 868.Transmission range: 25m (80ft).Interval of transmission of motion: 2 minutes.Dimensions (Length x Width x Height):148 x 64 x 45mm.3 years of warranty.Manufacturer: MEAN WELL.With this sensor in combination with the LED drivers series LCM-EO we can turn on when it detects the presence of any person. Has a gan sensitivity so that even though we move a little we will continue to discover, although you can also adjust level of sensitivity more low. We can set the power off time after the detection of a person as well as the level of power or even a level dim instead of off when not detect anyone. This sensor is ideal for corridors or jobs. We can save the power consumption, and only illuminate when necessary. You can synchronize multiple sensors with the drivers LCM-EO for detection at multiple points of the stairs or corridors.Its solar panel allows it to work without the need of battery whenever you are near a light source like a window. You can also add a button type battery additional for areas that are not lit or in low light. |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Sensor of presence wireless.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
