EO-N/UT

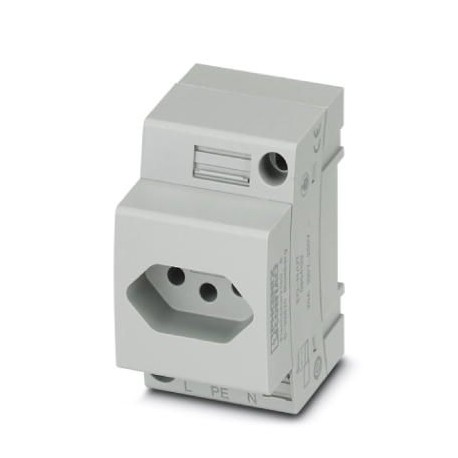

EO-N/UT 0804139 PHOENIX CONTACT Socket
$0.00USD
3647 in stock
Key Specifications
GTIN:4055626226705
Orderkey:0804139
Catalog page:Page 610 (C-3-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626226705 |
| Orderkey | 0804139 |
| Catalog page | Page 610 (C-3-2017) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 7042 |
| Minimum order quantity | 5 pc |
| Color (Ambient conditions) | gray |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 57.5 mm |
| Width (Key Commercial Data) | 45 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 75 mm |
| Country ID (Ambient conditions) | Brazil |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 73.900 g |
| Contact material (Ambient conditions) | CuZn37 |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Nominal current IN (Ambient conditions) | 20 A |
| Nominal voltage UN (Ambient conditions) | 250 V AC (50 Hz ... 60 Hz) |
| Standards/regulations (Connection data) | NBR 14136 |
| Insulating material (Ambient conditions) | PA |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Standards/regulations (Ambient conditions) | NBR 14136 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Power socket, N-type plug-in face, Screw connection, for Brazil/South Africa and other countries, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 20 A, -20 °C, 60 °C
