EO-L/UT/SH/LED

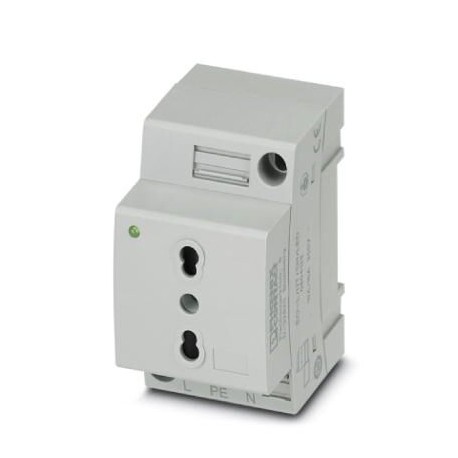

EO-L/UT/SH/LED 0804128 PHOENIX CONTACT Socket, Pin connector pattern type L, Screw connection, for Italy and..
$0.00USD
4748 in stock
Key Specifications
GTIN:4055626226606
Orderkey:0804128
(Drawings):
Catalog page:Page 564 (C-3-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626226606 |
| Orderkey | 0804128 |
| (Drawings) | |
| Catalog page | Page 564 (C-3-2019) |
| Packing unit | 1 |
| Depth (Drawings) | 57.5 mm |
| Width (Drawings) | 45 mm |
| ETIM 5.0 (eCl@ss) | EC001663 |
| ETIM 6.0 (eCl@ss) | EC001663 |
| ETIM 7.0 (eCl@ss) | EC001663 |
| Height (Drawings) | 75 mm |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 7042 |
| Color (Ambient conditions) | gray |
| Connection method (General) | Screw connection |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 4.0 (Classifications) | 27142300 |
| eCl@ss 4.1 (Classifications) | 27142300 |
| eCl@ss 5.0 (Classifications) | 27142300 |
| eCl@ss 5.1 (Classifications) | 27142300 |
| eCl@ss 6.0 (Classifications) | 27142300 |
| eCl@ss 7.0 (Classifications) | 27142305 |
| eCl@ss 8.0 (Classifications) | 27142305 |
| eCl@ss 9.0 (Classifications) | 27142305 |
| Country ID (Ambient conditions) | Italy |
| Status display (Ambient conditions) | Yes |
| Contact material (Ambient conditions) | CuZn37 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | |
| Nominal current IN (Ambient conditions) | 16 A |
| Nominal voltage UN (Ambient conditions) | 250 V AC (50 Hz) |
| Standards/regulations (Connection data) | CEI 23-50 |
| Insulating material (Ambient conditions) | PA |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Standards/regulations (Ambient conditions) | CEI 23-50 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Power socket, Plug-in face type L, Screw connection, for Italy and other countries, with extended accidental contact protection/safety device, indicator light, grey, for rail mounting at the service i
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Circuit diagram
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
