EO-J/UT/LED/DUO

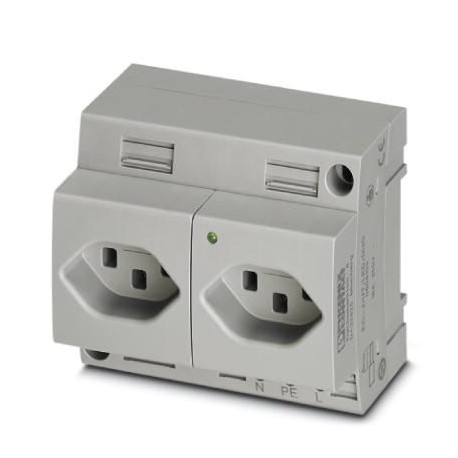

EO-J/UT/LED/DUO 0804103 PHOENIX CONTACT Double socket
$0.00USD
4084 in stock
Key Specifications
GTIN:4055626226385
Note:Made to Order (non-returnable)
Orderkey:0804103
Catalog page:Page 611 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626226385 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0804103 |
| Catalog page | Page 611 (C-3-2017) |
| Packing unit | 2 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 7042 |
| Minimum order quantity | 2 pc |
| Color (Ambient conditions) | gray |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 57.5 mm |
| Width (Key Commercial Data) | 90 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 75 mm |
| Country ID (Ambient conditions) | Switzerland |
| Status display (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 137.100 g |
| Contact material (Ambient conditions) | CuZn37 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Nominal current IN (Ambient conditions) | 16 A |
| Nominal voltage UN (Ambient conditions) | 250 V AC (50 Hz) |
| Standards/regulations (Connection data) | SEV 1011 |
| Insulating material (Ambient conditions) | PA |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Standards/regulations (Ambient conditions) | SEV 1011 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Dual socket, Plug-in J-side, Screw connection, with light indicator, for Switzerland and other countries, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
