EO-H/UT/LED/GN

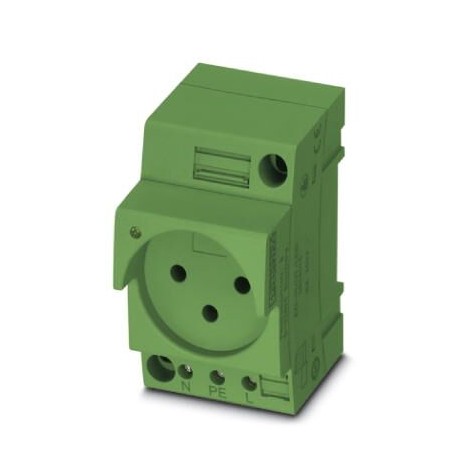

EO-H/UT/LED/GN 0804077 PHOENIX CONTACT Outlet EO-H/UT/LED/GN 0804077
$0.00USD
3426 in stock
Key Specifications
EAN:Four trillion fifty five billion six hundred twenty six million two hundred twenty six thousand one hundred thirty two
Key order:0804077
Key selling:BG4618 -
Catalog page:Page 609 (C_3_2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred twenty six thousand one hundred thirty two |
| Key order | 0804077 |
| Key selling | BG4618 - |
| Catalog page | Page 609 (C_3_2017) |
| Packing unit | 5 pcs |
| ETIM 6.0 (eCl@ss) | EC001663 |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| eCl@ss 5.1 (Ratings) | Twenty seven million one hundred forty two thousand three hundred |
| eCl@ss 6.0 (Ratings) | Twenty seven million one hundred forty two thousand three hundred |
| eCl@ss 7.0 (Ratings) | Twenty seven million one hundred forty two thousand three hundred five |
| eCl@ss 8.0 (Ratings) | Twenty seven million one hundred forty two thousand three hundred five |
| eCl@ss 9.0 (Ratings) | Twenty seven million one hundred forty two thousand three hundred five |
| Minimum order quantity | 5 pcs |
| Depth (Data commercial) | 57.5 mm |
| Width (Data commercial) | 45 mm |
| Height (Data commercial) | 75 mm |
| (Environmental conditions) | Six thousand twenty one |
| Type of connection (Overview) | Connection by screw |
| (Standards and specifications) | You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
| Color (Environmental conditions) | green |
| Unit weight (excluding packaging) | 71,800 g |
| Isolation (Environmental conditions) | PA |
| Room temperature (service) (Measures) | -20 °C ... 60 °C |
| Country code (Environmental conditions) | Israel |
| Core cross-section rigid min. (Overview) | 0,2 mm2 |
| Section of conductor AWG max. (Overview) | Twelve |
| Section of conductor AWG min. (Overview) | Twenty four |
| China RoHS (Standards and specifications) | Space of time for the intended use (FEUP): 50 years |
| REACh SVHC (Standards and specifications) | |
| Section of conductor rigid max. (Overview) | 4 mm2 |
| Material contact (Environmental conditions) | CuZn37 |
| Rated voltage UN (Environmental conditions) | 250 V AC (50 Hz) |
| Status indication (Environmental conditions) | Yes |
| Nominal current IN (Environmental conditions) | 16 To |
| Section of flexible conductor max. (Overview) | 2.5 mm2 |
| Section of flexible conductor, min. (Overview) | 0,2 mm2 |
| Class of flammability according to UL 94 (Data connection) | V0 |
| Class of flammability according to UL 94 (Environmental conditions) | V0 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Outlet, Side plug-in type H, Connection by screw, to Israel, with indication light, green, for mounting on a rail in the service interface or direct mount, 250 V AC, 16 A, -20 °C, 60 °C
