EO-CF/UT/LED/F

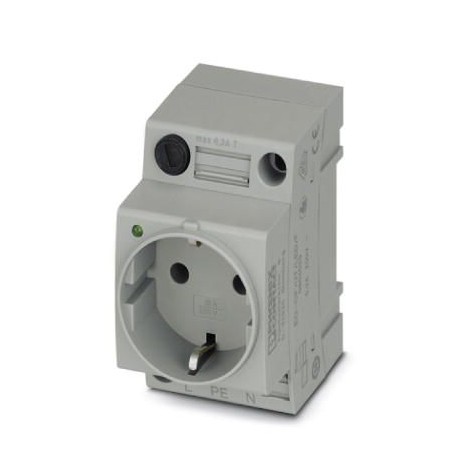

EO-CF/UT/LED/F 0804029 PHOENIX CONTACT Socket
$0.00USD
3833 in stock
Key Specifications
GTIN:4055626225708
Orderkey:0804029
Catalog page:Page 606 (C-3-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626225708 |
| Orderkey | 0804029 |
| Catalog page | Page 606 (C-3-2017) |
| Packing unit | 5 pc |
| Country of origin | PL (Poland) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 7042 |
| Minimum order quantity | 5 pc |
| Fuse (Ambient conditions) | 6.3 A (exchangeable) |
| Color (Ambient conditions) | gray |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 60 mm |
| Width (Key Commercial Data) | 45 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 75 mm |
| Country ID (Ambient conditions) | Germany |
| Status display (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 83.910 g |
| Contact material (Ambient conditions) | CuZn37 |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Nominal current IN (Ambient conditions) | 16 A |
| Nominal voltage UN (Ambient conditions) | 250 V AC (50 Hz) |
| Standards/regulations (Connection data) | VDE 0620-1 |
| Insulating material (Ambient conditions) | PA |
| Conductor cross section AWG max. (General) | 12 |
| Conductor cross section AWG min. (General) | 24 |
| Standards/regulations (Ambient conditions) | VDE 0620-1 |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Conductor cross section solid max. (General) | 4 mm² |
| Conductor cross section solid min. (General) | 0.2 mm² |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Connection data) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Connection data) | HL 1 - HL 3 |
Product Description
Power socket, Plug-in side type CF, Screw connection, 5 x 20 mm indicator light and fuse, 6.3 A, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 6 A, -20 °C, 60 °C, VDE06
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
