EO-CF/PT

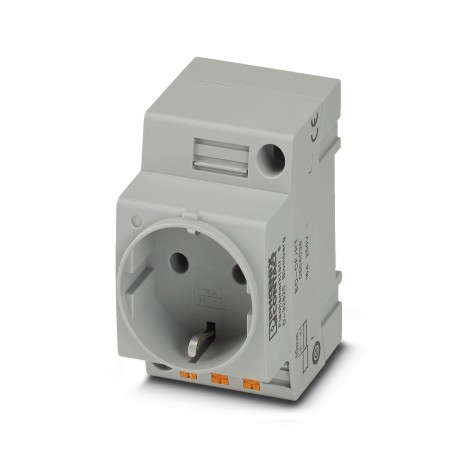

EO-CF/PT 0804038 PHOENIX CONTACT Socket
$0.00USD
4064 in stock
Key Specifications
:B3
Color:gray (RAL 7042)
Depth:61.7 mm
Width:45 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| B3 | |
| Color | gray (RAL 7042) |
| Depth | 61.7 mm |
| Width | 45 mm |
| Height | 75 mm |
| Result | Test passed |
| Spectrum | Service life test category 2, bogie-mounted |
| ASD level | 6.12 (m/s²)²/Hz |
| Frequency | f1= 5 Hz to f2= 250 Hz |
| Country ID | Germany |
| Pulse shape | Half-sine |
| Acceleration | 3.12g |
| Product type | Socket |
| Type of plug | Pin connector pattern type CF |
| Mounting type | for mounting on a DIN rail in the service interface or direct mounting |
| Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
| Shock duration | 18 ms |
| Status display | no |
| Nominal current | 16 A |
| Nominal voltage | 250 V AC (50 Hz) |
| Test directions | X-, Y- and Z-axis |
| Article revision | 04 |
| Contact material | CuZn37 |
| Stripping length | 10 mm |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Dimensional drawing | |
| Insulating material | PA |
| Degree of protection | IP20 |
| Standards/regulations | VDE 0620-1 |
| Test duration per axis | 5 h |
| Internal cylindrical gage | A3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Number of shocks per direction | 3 |
| Ambient temperature (operation) | -5 °C ... 40 °C (Average value over a period of 24 hours not above +35°C) |
| Conductor cross section flexible | 0.25 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.25 mm² ... 2.5 mm² |
Product Description
Power socket, Plug-in face type CF, Push-in spring connection, grey, for rail mounting at the service interface or direct mounting, 250 VAC, 16 A, -20 °C, 60 °C, VDE0620-1
