EO-AB/UT/LED/S/15

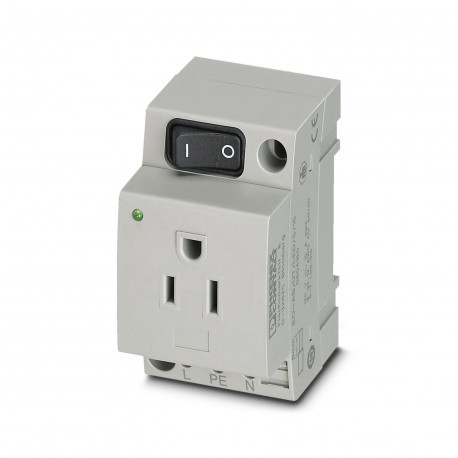

EO-AB/UT/LED/S/15 0804160 PHOENIX CONTACT Socket, Pin connector pattern type AB 15A, Screw connection, for U..
$0.00USD
3209 in stock
Key Specifications
:B3
Color:gray (RAL 7042)
Depth:75 mm
Width:45 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| B3 | |
| Color | gray (RAL 7042) |
| Depth | 75 mm |
| Width | 45 mm |
| Height | 75 mm |
| Country ID | USA |
| Product type | Socket |
| Screw thread | M3 |
| Type of plug | Pin connector pattern type AB 15A |
| Mounting type | DIN rail or direct mounting |
| Status display | yes |
| Nominal current | 15 A |
| Nominal voltage | 125 V AC (60 Hz) |
| Article revision | 03 |
| Contact material | CuZn37 |
| Stripping length | 8 mm |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Tightening torque | 0.5 ... 0.6 Nm |
| Insulating material | PA |
| Degree of protection | IP20 |
| Standards/regulations | UL 508 |
| Internal cylindrical gage | A3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Ambient temperature (operation) | -5 °C ... 40 °C (Average value over a period of 24 hours not above +35°C) |
| Conductor cross section flexible | 0.25 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.2 mm² ... 4 mm² |
Product Description
Power socket, Plug-in face type AB 15A, Screw connection, for the USA and other countries, with light indication and switch, grey, for rail mounting at the service interface or direct mounting, 125 VA
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
