ENP-360-24

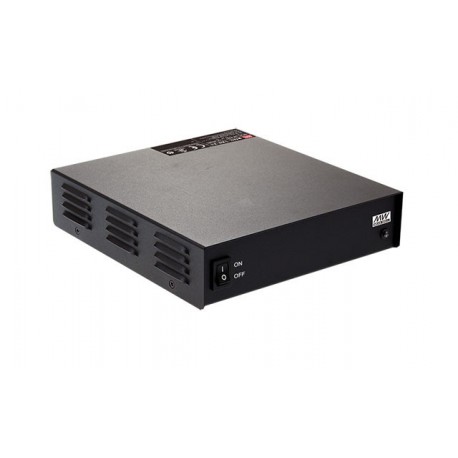

ENP-360-24 MEANWELL AC-DC Single output power supply with PFC, 3 stage charging, Universal AC input, Output ..
$0.00USD
3642 in stock
Key Specifications
Fan:Yes
Name:ENP-360-24
Format:Desktop
Series:ENP-360
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | ENP-360-24 |
| Format | Desktop |
| Series | ENP-360 |
| Approvals | CE, UL |
| Power (W) | 359,00 |
| Width (mm) | 178.00 |
| Height (mm) | 45.50 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Telecommunications |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 27,60 |
| Peak Power (W) | Four hundred fifty |
| Input connector | IEC 320-C14 |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 192.00 |
| Long Description | Power supply format desktop with PFC function.Format plastic box.Range of universal input90-264vac47-63Hz.Output voltage27,6 Vdc.Range of voltage output of 23,5-30V according to demand load.Output intensity13A. Range of output current 0-13A according to demand load.Power:359W.Efficiency typical:93%.(Level Vl).Factor corrector of a power >0,98 at 230vac full load.Working temperature: from-30up+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:192 x 178 x 45.5.3 years of warranty.Manufacturer: MEAN WELL.The series ENP are sources switched in format desktop with input connector europeanIEC320-C14and output connector screw |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Power supply format desktop with PFC function.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
