In Stock Hot Product
EMVS 20

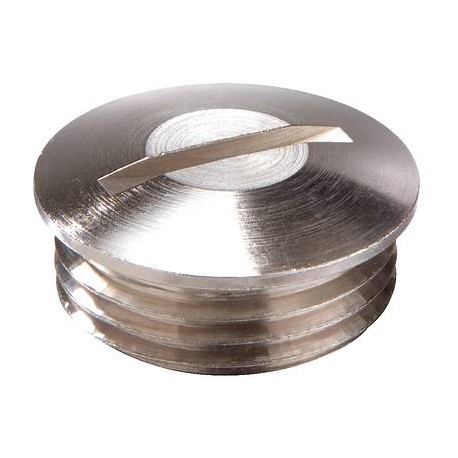

EMVS 20 10063153 WISKA Metal stopper, IP54, M20 thread
$0.00USD
4739 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMVS 20
Advice (Features):with O-ring IP66/IP68
Surface (Features):Nickel-plated
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMVS 20 |
| Advice (Features) | with O-ring IP66/IP68 |
| Surface (Features) | Nickel-plated |
| Material (Features) | Brass nickel-plated |
| Thread type (Features) | M |
| Packing unit (Features) | 100 |
| Temp. range max (Features) | 250 °C |
| Temp. range min (Features) | -200 °C |
| Total length TL (Features) | 9,5 mm |
| Protection class (Features) | IP54 |
| ETIM-Classification (Features) | EC000032 |
| External diameter ED (Features) | 22 mm |
| Ø Connection thread D (Features) | 20 |
| Order no. nickel-plated (Features) | 10063153 |
| Length screw-in thread L (Features) | 6,5 mm |
Product Description
Stop end, brass nickel-plated, M20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
