In Stock Hot Product
EMT 16

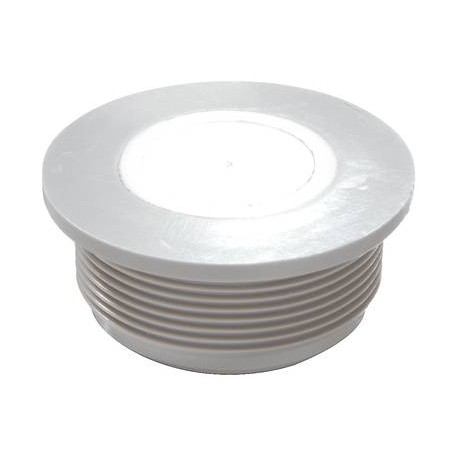

EMT 16 10062559 WISKA Blind stopper, cable inlet membrane, light grey polyethylene, M16 thread
$0.00USD
4465 in stock
Key Specifications
Type (Features):EMT 16
Material (Features):Thermoplastic elastomer
Ø Drilling (Features):16,5 mm
Packing unit (Features):100
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | EMT 16 |
| Material (Features) | Thermoplastic elastomer |
| Ø Drilling (Features) | 16,5 mm |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 11 mm |
| Protection class (Features) | IP66 |
| Wall thickness S (Features) | 2 mm |
| Order no. RAL 7035 (Features) | 10062559 |
| ETIM-Classification (Features) | EC000451 |
| External diameter ED (Features) | 21 mm |
| Ø cable diameter max (Features) | 9 mm |
| Ø cable diameter min (Features) | 1 mm |
| Ø Connection thread D (Features) | 16 |
| Length screw-in thread L (Features) | 9,5 mm |
Product Description
Membrane spout, TPE, RAL 7035, M16
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
