EMSVG 20

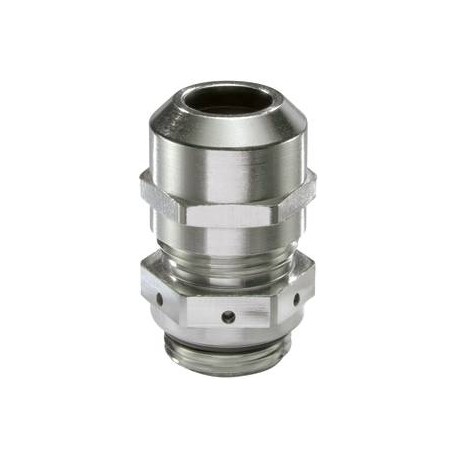

EMSVG 20 10065900 WISKA Metal VentGLAND cable glands, IP69K, range 6 to 13mm, M20 thread
$0.00USD
4085 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSVG 20
Thread type (Features):M
Key width SW (Features):24 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSVG 20 |
| Thread type (Features) | M |
| Key width SW (Features) | 24 mm |
| Packing unit (Features) | 1 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 41 mm - 50 mm |
| Protection class (Features) | IP68 / IP69 |
| Airflow at 70mbar (Features) | 55 l/h |
| Material membrane (Features) | ePTFE |
| Collar diameter (E) (Features) | 27 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter UL (Features) | 7,5 mm - 11,3 mm |
| Ø cable diameter max (Features) | 13 mm |
| Ø cable diameter min (Features) | 6 mm |
| Ø Connection thread D (Features) | 20 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10065900 |
| Install. torques cap nut (Features) | 8 N m |
| Install. torques fitting (Features) | 8 N m |
| Length screw-in thread L (Features) | 6 mm |
Product Description
Pressure compensation cable gland, brass nickel-plated, M20
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
