EMSP-AL (90X60)

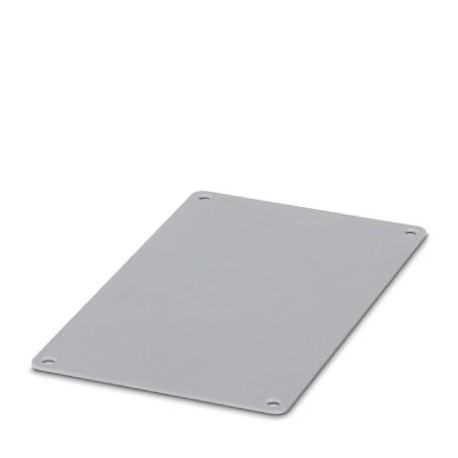

EMSP-AL (90X60) 0830504 PHOENIX CONTACT Equipment marking
$0.00USD
4538 in stock
Key Specifications
GTIN:4046356719025
Orderkey:0830504
Catalog page:Page 302 (C-3-2017)
Packing unit:15 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356719025 |
| Orderkey | 0830504 |
| Catalog page | Page 302 (C-3-2017) |
| Packing unit | 15 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 76169990 |
| Minimum order quantity | 15 pc |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | aluminum color |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5147999 BLUEMARK CLED |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | Aluminum |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 100 mm |
| Length (b) (Key Commercial Data) | 60 mm |
| Printability (Ambient conditions) | UV LED technology |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 12.930 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Number of bore holes (Ambient conditions) | 4 |
| Marking mounting type (Ambient conditions) | Screws, rivets |
| Ambient temperature (operation) (Dimensions) | -55 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 1 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 1 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Device marking, Aluminum plate, aluminum color, unlabeled, labelable with: BLUEMARKIDCOLOR, BLUEMARKID, BLUEMARK CLED, mounting class: screw, rivet, useful surface: 90x60mm, Number of individual index
