In Stock Hot Product
EMSKVZ 40

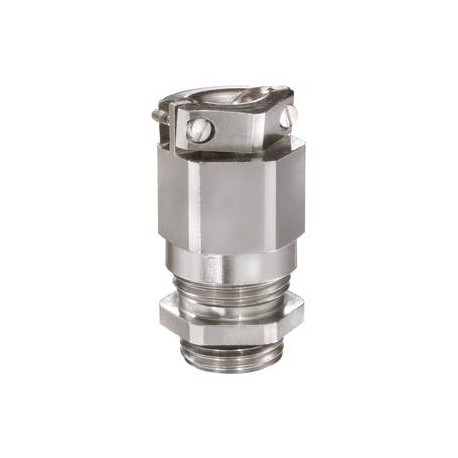

EMSKVZ 40 10065355 WISKA Metal cable glands + IP68 flange clamping, 16 to 28mm range, M40 thread
$0.00USD
4306 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKVZ 40
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKVZ 40 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 46 mm |
| Packing unit (Features) | 5 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 54 mm - 65 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Torque clamp srew (Features) | 0,5 N m |
| Collar diameter (E) (Features) | 51 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter UL (Features) | 17,4 mm - 26,4 mm |
| Ø cable diameter max (Features) | 28 mm |
| Ø cable diameter min (Features) | 16 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 40 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10065355 |
| Type of cable anchorage (Features) | B |
| Install. torques cap nut (Features) | 20 N m |
| Install. torques fitting (Features) | 20 N m |
| Length screw-in thread L (Features) | 8 mm |
Product Description
Cable gland, brass nickel-plated, M40, with external strain relief
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
