In Stock Hot Product
EMSKVS 50

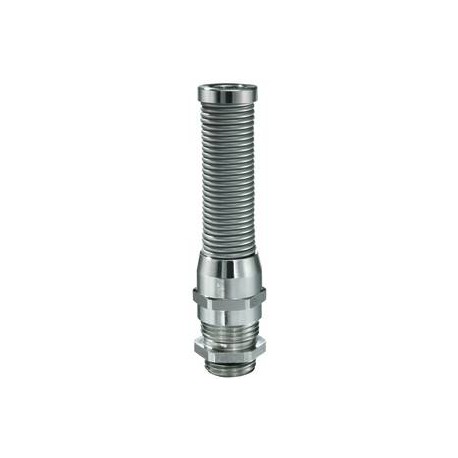

EMSKVS 50 10065836 WISKA IP68 metal cable glands, flexible protection input range from 21 to 35mm, M50 thread
$0.00USD
4945 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKVS 50
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKVS 50 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 55 mm |
| Packing unit (Features) | 10 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 231 mm - 242 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 61 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter UL (Features) | 24,3 mm - 33,4 mm |
| Ø cable diameter max (Features) | 35 mm |
| Ø cable diameter min (Features) | 21 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 50 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10065836 |
| Install. torques cap nut (Features) | 30 N m |
| Install. torques fitting (Features) | 30 N m |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Cable gland, brass nickel-plated, M50, with bend protection and short thread
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
