In Stock Hot Product
EMSKV-L 16 LT

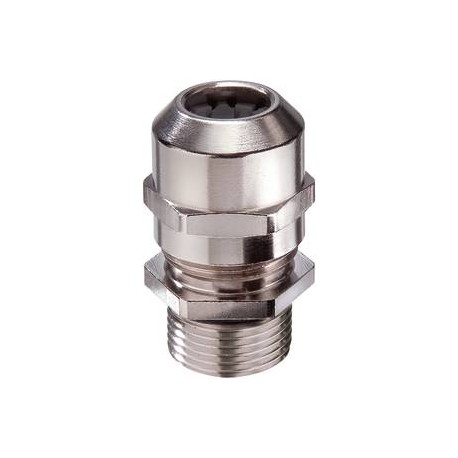

EMSKV-L 16 LT 10065809 WISKA Metal cable glands, IP68, -60o range from 4.5 to 10mm, long thread M16
$0.00USD
3352 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKV-L 16 LT
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKV-L 16 LT |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 20 mm |
| Packing unit (Features) | 50 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -60 °C |
| Total length TL (Features) | 33 mm - 41 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 4,5 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 16 |
| Material sealing gasket (Features) | Silicone |
| Order no. nickel-plated (Features) | 10065809 |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Cable gland LowTemp, brass nickel-plated, M16, with long thread
