EMSKV 32

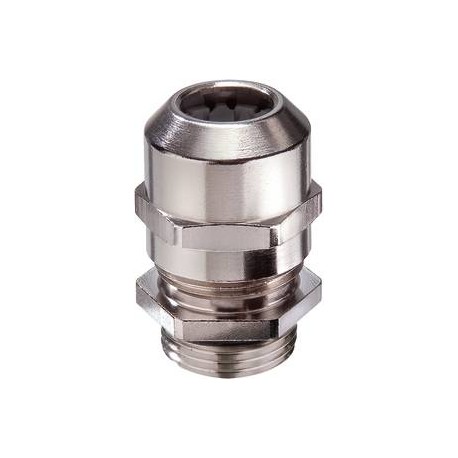

EMSKV 32 10065004 WISKA Metal cable glands, IP68, range from 13 to 21mm, thread M32
$0.00USD
4624 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKV 32
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKV 32 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 25 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 36 mm - 44 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 40 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter UL (Features) | 14,6 mm - 19,5 mm |
| Ø cable diameter max (Features) | 21 mm |
| Ø cable diameter min (Features) | 13 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10065004 |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 20 N m |
| Install. torques fitting (Features) | 20 N m |
| Length screw-in thread L (Features) | 8 mm |
Product Description
Cable gland, brass nickel-plated, M32, with short thread
