EMSKV 25 EMV-S

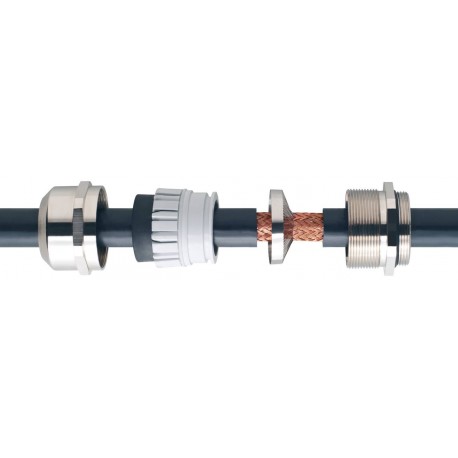

EMSKV 25 EMV-S 10102276 WISKA Metal cable glands, IP68 for "EMC" (interleaved ring), range from 10 to 17mm, ..
$0.00USD
3665 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKV 25 EMV-S
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKV 25 EMV-S |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 29 mm |
| Packing unit (Features) | 50 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 33 mm - 42 mm |
| Protection class (Features) | IP68 (5 bar 30 min), IP69 |
| Collar diameter (E) (Features) | 32 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 17 mm |
| Ø cable diameter min (Features) | 9 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 25 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10102276 |
| Type of cable anchorage (Features) | A |
| Cable Ø shield external (Features) | 7,5 mm - 13,5 mm |
| Install. torques cap nut (Features) | 10 N m |
| Install. torques fitting (Features) | 10 N m |
| Length screw-in thread L (Features) | 7 mm |
| Material earthing insert (Features) | Stainless steel 1.4310 |
Product Description
EMC-cable gland, brass nickel-plated with short thread, M25
