In Stock Hot Product
EMSKV 16 RW

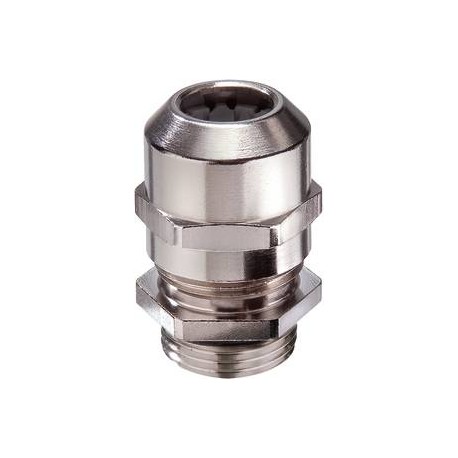

EMSKV 16 RW 10104294 WISKA Metal cable glands, IP68, range from 4.5 to 10mm, thread M16, EN 45545
$0.00USD
3789 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKV 16 RW
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKV 16 RW |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 20 mm |
| Packing unit (Features) | 50 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 26 mm - 34 mm |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 4,5 mm |
| Material clamping cage (Features) | Polyamide UL94-V0 |
| Ø Connection thread D (Features) | 16 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10104294 |
| Type of cable anchorage (Features) | A |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 5 mm |
| Hazard level EN acc. 45545 (Features) | R22=HL3 / R23=HL3 / R24=HL3 |
Product Description
Railway cable gland, brass nickel-plated, with short thread, M16
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
