In Stock Hot Product
EMSKE-L 63 LT

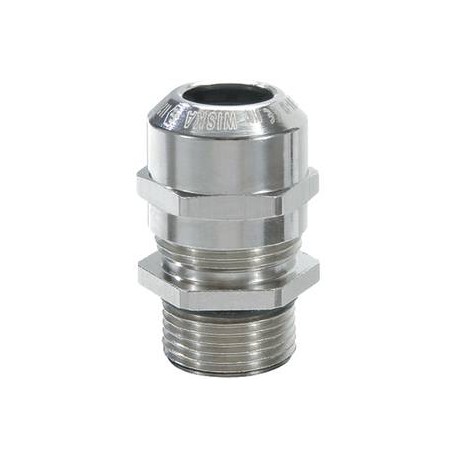

EMSKE-L 63 LT 10065945 WISKA Metal cable glands, "ATEX" IP68, -60o range from 34 to 48mm, long thread M63
$0.00USD
3813 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKE-L 63 LT
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKE-L 63 LT |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 68 mm |
| Packing unit (Features) | 10 |
| Ex-Certificate (Features) | ATEX, IECEx |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -60 °C |
| Total length TL (Features) | 61 mm - 72 mm |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 75 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 48 mm |
| Ø cable diameter min (Features) | 34 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 63 |
| Material sealing gasket (Features) | Silicone |
| Order no. nickel-plated (Features) | 10065945 |
| Install. torques cap nut (Features) | 40 N m |
| Install. torques fitting (Features) | 40 N m |
| Length screw-in thread L (Features) | 15 mm |
Product Description
Ex-cable gland LowTemp, brass nickel-plated with long thread, M63
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
