EMSKE-L 12

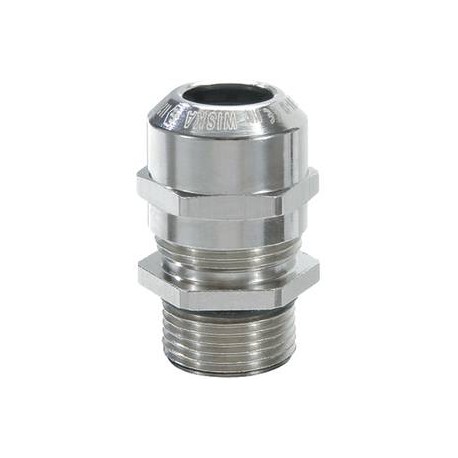

EMSKE-L 12 10065048 WISKA Metal cable glands, "ATEX" IP68, range from 4 to 7mm, long thread M12
$0.00USD
4142 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKE-L 12
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKE-L 12 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 16 mm |
| Packing unit (Features) | 50 |
| Ex-Certificate (Features) | ATEX, IECEx |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 30 mm - 37 mm |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 18 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter UL (Features) | 4,1 mm - 6 mm |
| Ø cable diameter max (Features) | 7 mm |
| Ø cable diameter min (Features) | 4 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 12 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10065048 |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 12 mm |
Product Description
Ex-cable gland, brass nickel-plated with long thread, M12
