In Stock Hot Product
EMSKE 16 LT

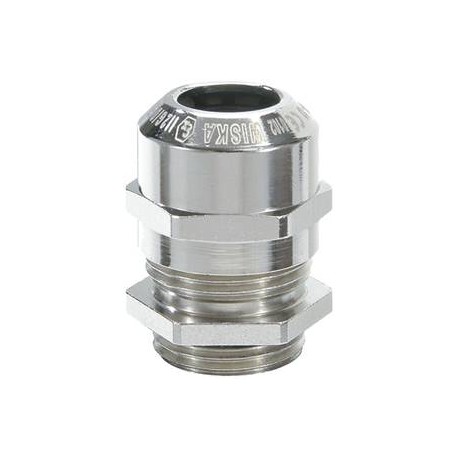

EMSKE 16 LT 10065947 WISKA Metal cable glands, "ATEX" IP68, -60o range from 5 to 10mm, thread M16
$0.00USD
4031 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMSKE 16 LT
Surface (Features):Nickel-plated
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMSKE 16 LT |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 20 mm |
| Packing unit (Features) | 50 |
| Ex-Certificate (Features) | ATEX, IECEx |
| Temp. range max (Features) | 75 °C |
| Temp. range min (Features) | -60 °C |
| Total length TL (Features) | 26 mm - 34 mm |
| Protection class (Features) | IP66 / IP68 (5 bar 30 min) |
| Type of protection (Features) | Ex eb, Ex tb |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 10 mm |
| Ø cable diameter min (Features) | 5 mm |
| Material clamping cage (Features) | Polyamide |
| Ø Connection thread D (Features) | 16 |
| Material sealing gasket (Features) | Silicone |
| Order no. nickel-plated (Features) | 10065947 |
| Install. torques cap nut (Features) | 4 N m |
| Install. torques fitting (Features) | 4 N m |
| Length screw-in thread L (Features) | 5 mm |
Product Description
Ex-cable gland LowTemp, brass nickel-plated with short thread, M16
