EMS 16

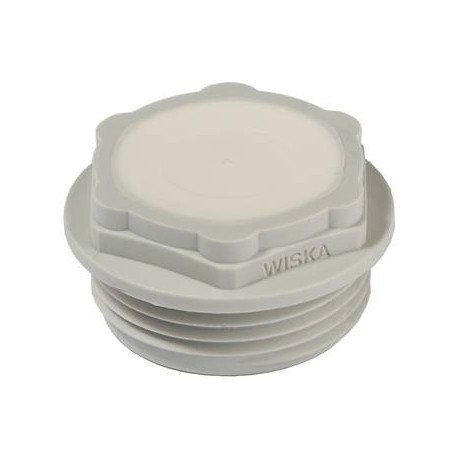

EMS 16 10062567 WISKA Cable inlet membrane, light grey polypropylene, M16 thread
$0.00USD
4596 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMS 16
Material (Features):Polypropylene
Thread type (Features):M
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMS 16 |
| Material (Features) | Polypropylene |
| Thread type (Features) | M |
| Key width SW (Features) | 17 mm |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -30 °C |
| Total length TL (Features) | 15 mm |
| Protection class (Features) | IP66 |
| Material membrane (Features) | TPE |
| Order no. RAL 7035 (Features) | 10062567 |
| Collar diameter (E) (Features) | 20 mm |
| ETIM-Classification (Features) | EC000451 |
| Installation torques (Features) | 1,5 N m |
| Ø cable diameter max (Features) | 9 mm |
| Ø cable diameter min (Features) | 1 mm |
| Ø Connection thread D (Features) | 16 |
| Length screw-in thread L (Features) | 9 mm |
Product Description
Membrane screw, plastic, RAL 7035, M16
