In Stock Hot Product
EMLS (20X20)R SR CUS

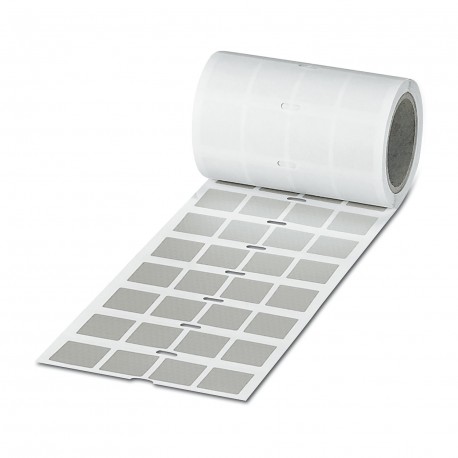

EMLS (20X20)R SR CUS 0830172 PHOENIX CONTACT Safety label with special adhesive
$0.00USD
3742 in stock
Key Specifications
GTIN:4046356628037
Note:Made to Order (non-returnable)
Orderkey:0830172
Catalog page:Page 289 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356628037 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0830172 |
| Catalog page | Page 289 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39199080 |
| (Ambient conditions) | 0804663 THERMOMARK ROLLMASTER 600 |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | silver |
| Device (Ambient conditions) | 5146477 THERMOMARK ROLL |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | free from silicone and halogen |
| Ink ribbon (Ambient conditions) | 5145384 THERMOMARK-RIBBON 110 |
| Width (a) (Key Commercial Data) | 20 mm |
| File number (Ambient conditions) | UL-MH48542 / PC-014 |
| Length (b) (Key Commercial Data) | 20 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Foil strength (Ambient conditions) | 53 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 1.990 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 20 µm |
| Connection in acc. with standard (General) | UL |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | > 5 °C |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 150 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 1000 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 4 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Security label with special adhesive, available: by lines, silver, labelled according to customer specifications, mounting class: glued, usable area: 20 x 20 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
