In Stock Hot Product
EMLP (60X30)R CUS

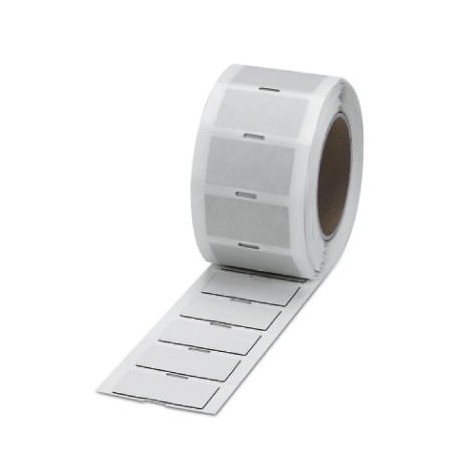

EMLP (60X30)R CUS 0824363 PHOENIX CONTACT Plastic label
$0.00USD
3711 in stock
Key Specifications
GTIN:4046356352390
Note:Made to Order (non-returnable)
Orderkey:0824363
Catalog page:Page 274 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356352390 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0824363 |
| Catalog page | Page 274 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| (Ambient conditions) | 5146231 THERMOMARK X1.2 |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5146477 THERMOMARK ROLL |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | free from silicone and halogen |
| Ink ribbon (Ambient conditions) | 5145384 THERMOMARK-RIBBON 110 |
| Width (a) (Key Commercial Data) | 60 mm |
| Length (b) (Key Commercial Data) | 30 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Foil strength (Ambient conditions) | 50 µm |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 1.990 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 20 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | 18 °C ... 40 °C |
| Recommended storage conditions (Dimensions) | 21 °C / 50 % relative humidity. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 250 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 1 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | following DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Label, available: by lines, white, labelled according to customer specifications, mounting type: glued, usable area: 60 x 30 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
