EMLP (45X15)R SR CUS

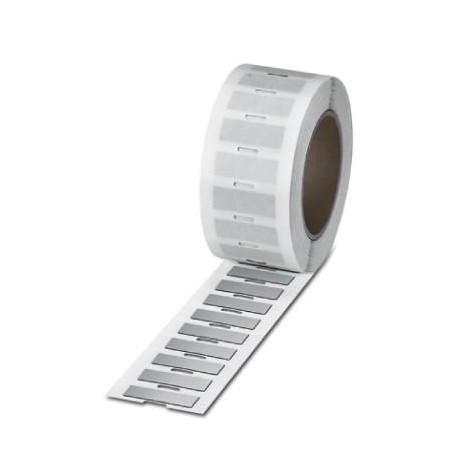

EMLP (45X15)R SR CUS 0824362 PHOENIX CONTACT Plastic label
$0.00USD
4747 in stock
Key Specifications
GTIN:4046356352383
Note:Made to Order (non-returnable)
Orderkey:0824362
Catalog page:Page 274 (C-5-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356352383 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0824362 |
| Catalog page | Page 274 (C-5-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| (Ambient conditions) | 5146231 THERMOMARK X1.2 |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | silver |
| Device (Ambient conditions) | 5146477 THERMOMARK ROLL |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Procedure (Ambient conditions) | A |
| Components (Ambient conditions) | free from silicone and halogen |
| Ink ribbon (Ambient conditions) | 5145384 THERMOMARK-RIBBON 110 |
| Width (a) (Key Commercial Data) | 45 mm |
| Length (b) (Key Commercial Data) | 15 mm |
| Printability (Ambient conditions) | Thermal transfer |
| Foil strength (Ambient conditions) | 175 µm |
| Test duration (Ambient conditions) | 96 h |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 1.990 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 400 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | 18 °C ... 40 °C |
| Recommended storage conditions (Dimensions) | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 120 °C |
| Salt spray testing result (Ambient conditions) | Test passed |
| Flammability rating according to UL 94 (General) | V0 |
| Number of individual labels (Ambient conditions) | 500 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 1 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | IEC 61010-1:2010-06 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Label, available: by lines, silver, labelled according to customer specifications, mounting class: glued, usable area: 45 x 15 mm
