In Stock Hot Product
EMLP 32 (38X14)

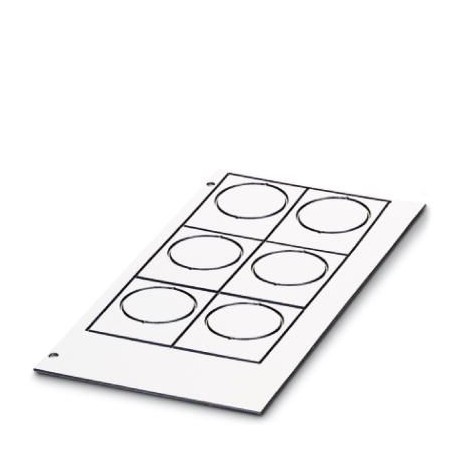

EMLP 32 (38X14) 0822291 PHOENIX CONTACT Plastic label with drill hole
$0.00USD
4527 in stock
Key Specifications
GTIN:4046356318334
Note:Made to Order (non-returnable)
Orderkey:0822291
Catalog page:Page 349 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356318334 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0822291 |
| Catalog page | Page 349 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39269092 |
| (Ambient conditions) | 5145546 P1 ENGRAVING UNIT |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 5144615 CMS-P1-PLOTTER |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | TRANSPLY-ABS |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 38 mm |
| Length (b) (Key Commercial Data) | 50 mm |
| Printability (Ambient conditions) | Plotter |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 20.000 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 50 µm |
| Marking mounting type (Ambient conditions) | adhesive |
| Recommended storage conditions (Dimensions) | 20°C/50% relative humidity. Storage in the original packaging is recommended. |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 80 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 6 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Number of individual labels per row (Ambient conditions) | 2 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Plastic sign with hole, Card, white, unlabeled, labelable with: P1 ENGRAVING UNIT, ENGRAVING UNIT, CMS-P1-PLOTTER, PLOTMARK, mounting class: glued, usable surface: 38 x 14 mm, Number of individual ind
