In Stock Hot Product
EML (15X6)R YE
EML (15X6)R YE 0819288 PHOENIX CONTACT Label
$0.00USD
3476 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Color:yellow (RAL 1018)
Width:15 mm
Cycles:2
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Color | yellow (RAL 1018) |
| Width | 15 mm |
| Cycles | 2 |
| Length | 6 mm |
| Result | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| Adhesive | Acrylic |
| Material | Polyester |
| Components | free from silicone and halogen |
| Shelf life | 2 years |
| Product type | Device marking |
| Requirements | ≥ 5 N |
| Climate level | AHT 1.0 S |
| Foil strength | 55 µm |
| Mounting type | adhesive |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 03 |
| Text field width | 15.00 mm |
| Adhesive strength | 20 µm |
| Text field height | 6.00 mm |
| Identification technology | Thermal transfer for rolls |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| Rating 100 °C (121 °C) | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Number of individual labels | 2500 |
| Ambient temperature (assembly) | > 5 °C |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Acetone (99 %)[CAS No. 67-64-1] | Test passed |
| Ethanol (99 %)[CAS No. 64-17-5] | Test passed |
| Number of individual labels per row | 5 |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l[CAS No. 1310-73-2] | Test passed |
| Recommended ambient temperature (storage/transport) | 23 °C |
Product Description

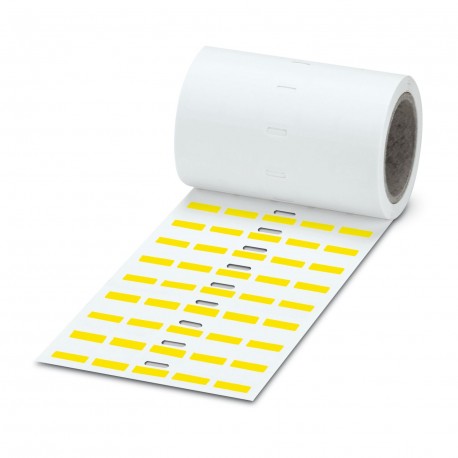

Label, Roll, yellow, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2: without printing,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
