EMG125-B24

Parameter	Value
GTIN	4017918083106
Orderkey	2947996
Catalog page	Page 715 (C-1-2013)
Packing unit	2 pc
Country of origin	DE (Germany)
Custom tariff number	85369010
Depth (Ambient conditions)	75 mm
Pitch (Ambient conditions)	5 mm
Width (Ambient conditions)	125 mm
Height (Ambient conditions)	47.5 mm
Length (Ambient conditions)	75 mm
(Standards and Regulations)	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Number of positions (Dimensions)	48
Color (RAL) (Key Commercial Data)	green
Housing type (Key Commercial Data)	Component housing
Weight per Piece (excluding packing)	228.550 g
China RoHS (Standards and Regulations)	Environmentally Friendly Use Period = 50
Housing material (Key Commercial Data)	Polycarbonate fiber reinforced
Ambient temperature (operation) (General)	-40 °C ... 125 °C
Power dissipation without gap (Dimensions)	9.5 W
Power dissipation with 20 mm gap (Dimensions)	11 W
Conductor cross section AWG max. (Technical data)	12
Conductor cross section AWG min. (Technical data)	24
Conductor cross section solid max. (Technical data)	4 mm²
Conductor cross section solid min. (Technical data)	0.2 mm²
Conductor cross section flexible max. (Technical data)	2.5 mm²
Conductor cross section flexible min. (Technical data)	0.2 mm²
Flammability rating according to UL 94 (Connection data)	V0

Module to be equipped, consisting of housing, MKDS 3 terminal blocks and printed circuit board

Technical specifications and performance data

Installation and operation guide

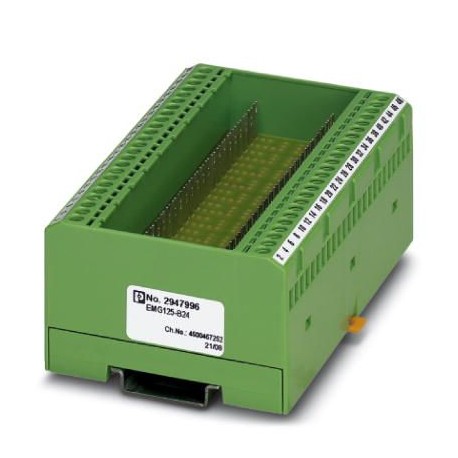

EMG125-B24 2947996 PHOENIX CONTACT Electronic housing
