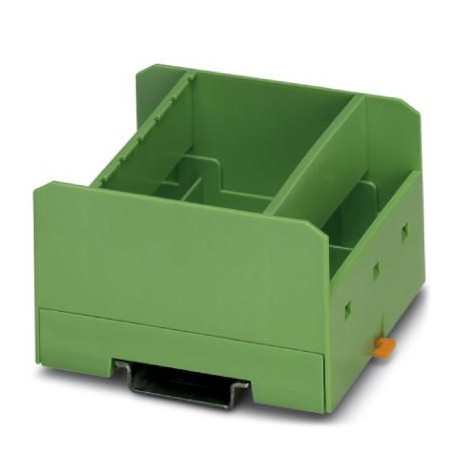

EMG 75-LG/O
EMG 75-LG/O 2941879 PHOENIX CONTACT Electronic housing
$0.00USD
3542 in stock
Key Specifications
GTIN:4017918101060
Orderkey:2941879
Catalog page:Page 713 (C-1-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918101060 |
| Orderkey | 2941879 |
| Catalog page | Page 713 (C-1-2013) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| Minimum order quantity | 5 pc |
| Depth (Ambient conditions) | 75 mm |
| Width (Ambient conditions) | 75 mm |
| Height (Ambient conditions) | 47.5 mm |
| Length (Ambient conditions) | 75 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Color (RAL) (Key Commercial Data) | green |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 55.000 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | Polycarbonate fiber reinforced |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Power dissipation without gap (Dimensions) | 3.3 W |
| Power dissipation with 20 mm gap (Dimensions) | 3.9 W |
| Conductor cross section AWG max. (Technical data) | 12 |
| Conductor cross section AWG min. (Technical data) | 24 |
| Conductor cross section solid max. (Technical data) | 4 mm² |
| Conductor cross section solid min. (Technical data) | 0.2 mm² |
| Conductor cross section flexible max. (Technical data) | 2.5 mm² |
| Conductor cross section flexible min. (Technical data) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
Product Description
Electronics housing, for inserting a printed circuit board, without screw or cap connection terminals, with open terminal block
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
