In Stock Hot Product
EMG 75-LG BK

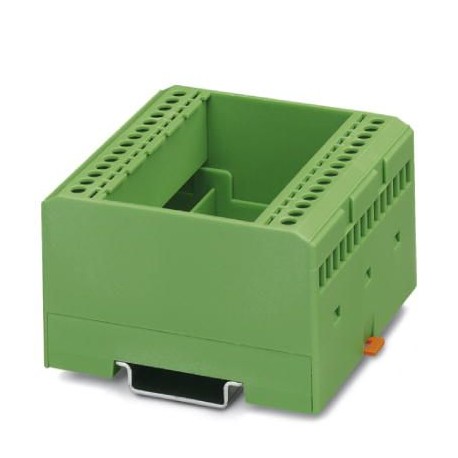

EMG 75-LG BK 2941345 PHOENIX CONTACT Housing for electronics, to insert a printed circuit board, without ter..
$0.00USD
4618 in stock
Key Specifications
GTIN:4017918245016
Note:Made to Order (non-returnable)
Orderkey:2941345
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918245016 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2941345 |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85472000 |
| Minimum order quantity | 5 pc |
| Depth (Ambient conditions) | 75 mm |
| Width (Ambient conditions) | 75 mm |
| Length (Ambient conditions) | 75 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Number of positions (Dimensions) | 28 |
| Color (RAL) (Key Commercial Data) | black (9005) |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 66.610 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Housing material (Key Commercial Data) | Polycarbonate fiber reinforced |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Conductor cross section AWG max. (Technical data) | 12 |
| Conductor cross section AWG min. (Technical data) | 24 |
| Conductor cross section solid max. (Technical data) | 4 mm² |
| Conductor cross section solid min. (Technical data) | 0.2 mm² |
| Conductor cross section flexible max. (Technical data) | 2.5 mm² |
| Conductor cross section flexible min. (Technical data) | 0.2 mm² |
| Flammability rating according to UL 94 (Connection data) | V0 |
