EMG 30-LG/SET

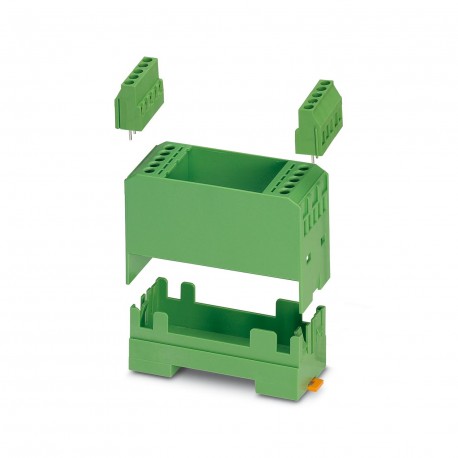

EMG 30-LG/SET 2940016 PHOENIX CONTACT Electronic housing
$0.00USD
3353 in stock
Key Specifications
GTIN:4017918079796
Orderkey:2940016
Catalog page:Page 711 (C-1-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918079796 |
| Orderkey | 2940016 |
| Catalog page | Page 711 (C-1-2013) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Minimum order quantity | 5 pc |
| Depth (Ambient conditions) | 75 mm |
| Pitch (Ambient conditions) | 5 mm |
| Width (Ambient conditions) | 30 mm |
| Height (Ambient conditions) | 47.5 mm |
| Length (Ambient conditions) | 75 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Number of positions (Dimensions) | 10 |
| Color (RAL) (Key Commercial Data) | green |
| Housing type (Key Commercial Data) | Component housing |
| Weight per Piece (excluding packing) | 50.420 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Housing material (Key Commercial Data) | Polycarbonate fiber reinforced |
| Ambient temperature (operation) (General) | -40 °C ... 125 °C |
| Power dissipation without gap (Dimensions) | 1.5 W |
| Power dissipation with 20 mm gap (Dimensions) | 1.7 W |
| Flammability rating according to UL 94 (Technical data) | V0 |
Product Description
Electronics housing set, consisting of electronics housing and card terminal blocks, step 5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB terminal block, nominal current: 24 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green. The article can be aligned to create different nos. of positions!
