EMG 22-GR/230/2

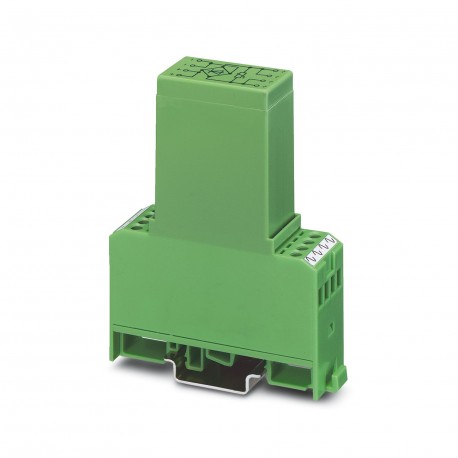

EMG 22-GR/230/2 2949813 PHOENIX CONTACT Rectifier module
$0.00USD
4542 in stock
Key Specifications
Note:and EN 61326
Color:green (RAL 6021)
Depth:102 mm
Width:22.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | and EN 61326 |
| Color | green (RAL 6021) |
| Depth | 102 mm |
| Width | 22.5 mm |
| Height | 75 mm |
| Certificate | CE-compliant |
| Product type | Diode module |
| Screw thread | M3 |
| Assembly note | in rows with zero spacing |
| Mounting type | DIN rail mounting |
| Article revision | 11 |
| Pollution degree | 2 |
| Stripping length | 8 mm |
| Connection method | Screw connection |
| Mounting position | any |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Rated insulation voltage | 300 V |
| Conductor cross section AWG | 24 ... 12 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Product Description
Rectifier module, with varistor protection circuit, operating voltage 230 V AC
