In Stock Hot Product
EME3PMMCT5

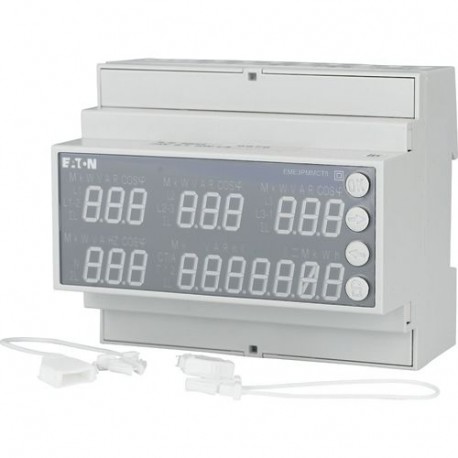

EME3PMMCT5 171631 EATON ELECTRIC Multi-/power meter, 49-51 Hz, 5 A x
$0.00USD
4417 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):90 mm
Model (EF000010):Measurement transformer
Width (EF000008):108 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 90 mm |
| Model (EF000010) | Measurement transformer |
| Width (EF000008) | 108 mm |
| Height (EF000040) | 70 mm |
| Frequency (EF000416) | 50 Hz |
| Pole type (EF008843) | Four conductor |
| Calibrated (EF008836) | No |
| Pulse rate (EF008840) | 0 Imp/kWh (kvarh) |
| Pulse type (EF008839) | S0 |
| Energy type (EF007135) | Effective power and reactive power |
| Tariff type (EF007550) | Two-tariff |
| Pulse output (EF008838) | Electrical |
| Suitable for (EF000073) | Purchase/supply |
| Type of meter (EF005441) | Electronic |
| Accuracy class (EF008842) | A |
| Tariff control (EF008834) | External |
| With lock code (EF008846) | No |
| EEC40 signature (EF008845) | No |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Type of interface (EF006977) | Other |
| Type of indication (EF000306) | Digital |
| Max. current (Imax) (EF000877) | 6 A |
| Escapement mechanism (EF008835) | No |
| Nominal current (In) (EF008873) | 6 A |
| Nominal voltage (Un) L-L (EF008872) | 480 V |
| Nominal voltage (Un) N-L (EF008871) | 300 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Measurement type load profile (EF008844) | No |
| Number of positions total (counter) (EF004442) | 8 |
| Width in number of modular spacings (EF002950) | 4 |
Product Description
Three-phase DIN rail multimeter
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
