EMD-SL-PH-690

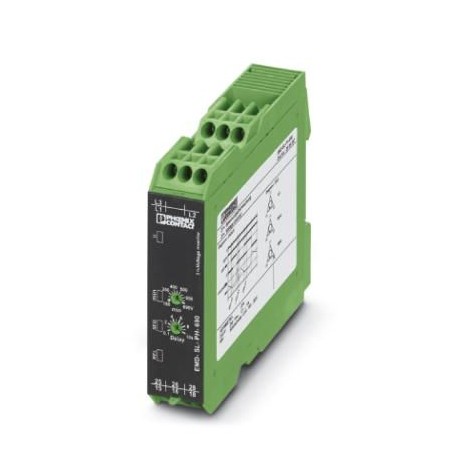

EMD-SL-PH-690 2905597 PHOENIX CONTACT Monitoring relay
$0.00USD
4304 in stock
Key Specifications
GTIN:4046356967198
Orderkey:2905597
Catalog page:Page 269 (C-5-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356967198 |
| Orderkey | 2905597 |
| Catalog page | Page 269 (C-5-2017) |
| Packing unit | 1 pc |
| (Dimensions) | -25 °C ... 55 °C (B300) |
| (Input data) | 75 VA (2.5 A/30 V DC at +70°C) |
| Country of origin | AT (Austria) |
| Color (Power supply) | green |
| Custom tariff number | 85364900 |
| Output fuse (Input data) | 5 A (fast-blow) |
| Contact type (Input data) | 2 floating PDT contacts |
| Conformance (Power supply) | CE-compliant |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Depth (Key Commercial Data) | 113 mm |
| Tightening torque (General) | 1 Nm |
| Width (Key Commercial Data) | 22.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 90 mm |
| Conformance (Connection data) | CE-compliant |
| Function (Ambient conditions) | Undervoltage, phase sequence, phase failure |
| Operating mode (Power supply) | 100% operating factor |
| Supply voltage (Contact side) | ±15 % (= measuring voltage) |
| UL, USA/Canada (Power supply) | UL/C-UL listed UL 508 |
| Asymmetry (Ambient conditions) | 25 % |
| Mounting position (Power supply) | any |
| Noise emission (Connection data) | EN 61326-1 |
| Noise immunity (Connection data) | EN 61326-1 |
| UL, USA/Canada (Connection data) | UL/C-UL listed UL 508 |
| Recovery time (Ambient conditions) | > 500 ms |
| Basic accuracy (Ambient conditions) | ≤ 3 % (of scale end value) |
| Overvoltage category (Power supply) | III (IEC 60664-1) |
| Assembly instructions (Power supply) | on standard DIN rail NS 35 in accordance with EN 60715 |
| Repeat accuracy (Ambient conditions) | ≤ 2 % |
| Weight per Piece (excluding packing) | 156.400 g |
| Conductor cross section AWG (General) | 20 ... 14 |
| Setting accuracy (Ambient conditions) | ≤ 5 % (of scale end value) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Maximum switching voltage (Input data) | 400 V AC |
| Mechanical service life (Power supply) | 20x 106cycles |
| Conductor cross section solid (General) | 0.5 mm² ... 2.5 mm² |
| Low Voltage Directive (Connection data) | Conformance with LV directive 2006/95/EC |
| Input voltage range (Ambient conditions) | 177 V ... 794 V (3~) |
| Conductor cross section flexible (General) | 0.5 mm² ... 2.5 mm² |
| Housing insulation material (Power supply) | Polyamide PA, self-extinguishing |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 70 °C (C300) |
| Electromagnetic compatibility (Power supply) | Conformance with EMC Directive 2004/108/EC |
| Nominal input voltage UN (Ambient conditions) | 690 V (3~ 208 V ... 690 V) |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.5 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2004/108/EC |
| Interrupting rating (ohmic load) max. (Input data) | 1250 VA (5 A/250 V AC at +55 °C) |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Setting range for response delay (Ambient conditions) | 0.1 s ... 10 s |
| Min setting range of the voltage threshold value (Ambient conditions) | 177 V AC |
| Max. setting range of the voltage threshold value (Ambient conditions) | 794 V AC |
Product Description
Control relay for monitoring phase sequence, phase fault and asymmetry in 208 V AC... 690 V AC three-phase voltages, 2 switched contacts, screw connection
