EMD-BL-PTC-PT

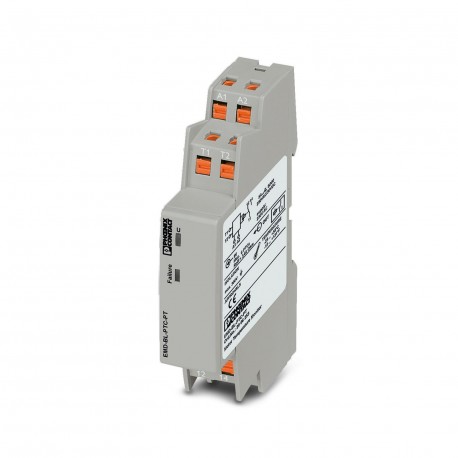

EMD-BL-PTC-PT 2906253 PHOENIX CONTACT Monitoring relay
$0.00USD
4906 in stock
Key Specifications
GTIN:4055626053745
Orderkey:2906253
Catalog page:Page 264 (C-5-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626053745 |
| Orderkey | 2906253 |
| Catalog page | Page 264 (C-5-2017) |
| Packing unit | 1 pc |
| Country of origin | AT (Austria) |
| Color (Power supply) | gray |
| Custom tariff number | 85364900 |
| Output fuse (Input data) | 5 A (fast-blow) |
| Contact type (Input data) | 1 floating PDT |
| Conformance (Power supply) | CE-compliant |
| Stripping length (General) | 8 mm |
| Connection method (General) | Push-in connection |
| Depth (Key Commercial Data) | 65.5 mm |
| Width (Key Commercial Data) | 17.5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 88 mm |
| Conformance (Connection data) | CE-compliant |
| Function (Ambient conditions) | Winding temperature monitoring |
| Operating mode (Power supply) | 100% operating factor |
| Supply voltage (Contact side) | 230 V AC (-15 % ... +10 %) |
| Mounting position (Power supply) | any |
| Noise emission (Connection data) | EN 61000-6-3 |
| Noise immunity (Connection data) | EN 61000-6-2 |
| Recovery time (Ambient conditions) | > 300 ms |
| Release value (Ambient conditions) | ≤ 1.6 kΩ (Relay picks up) |
| Basic accuracy (Ambient conditions) | ± 10 % (of scale end value) |
| Overvoltage category (Power supply) | III (IEC 60947-5-1) |
| Response value (Ambient conditions) | ≥ 3.6 kΩ (Relay drops out) |
| Supply voltage range (Contact side) | 195.5 V AC ... 253 V AC |
| Assembly instructions (Power supply) | on standard DIN rail NS 35 in accordance with EN 60715 |
| Weight per Piece (excluding packing) | 74.300 g |
| Conductor cross section AWG (General) | 26 ... 14 |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Maximum switching voltage (Input data) | 250 V AC (in acc. with IEC 60947-5-1) |
| Mechanical service life (Power supply) | 15x 106cycles |
| Conductor cross section solid (General) | 0.14 mm² ... 2.5 mm² |
| Low Voltage Directive (Connection data) | Conformance with Low Voltage Directive 2006/95/EC (valid until 2016-04-19) / 2014/35/EU (valid from 2016-04-20) |
| Conductor cross section flexible (General) | 0.14 mm² ... 2.5 mm² |
| Housing insulation material (Power supply) | Polyamide PA 6.6, self-extinguishing |
| Total cold resistance (Ambient conditions) | ≤ 1.5 kΩ |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 55 °C |
| Electromagnetic compatibility (Power supply) | Conformance with EMC Directive 2014/30/EU |
| Short-circuit detection (Ambient conditions) | < 20 Ω |
| Conductor cross section flexible max. (General) | 2.5 mm² |
| Conductor cross section flexible min. (General) | 0.14 mm² |
| Electromagnetic compatibility (Connection data) | Conformance with EMC Directive 2014/30/EU |
| Interrupting rating (ohmic load) max. (Input data) | 1250 VA (5 A / 250 V AC) |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Maximum temperature coefficient (Ambient conditions) | < 0.05 %/K |
Product Description
Motor winding temperature monitoring (maximum 6 PTC) for temperature sensor according to DIN 44081 and DIN 44082 with short-circuit monitoring of the thermistor circuit, with push-in connection.
