EMCGV 32-150

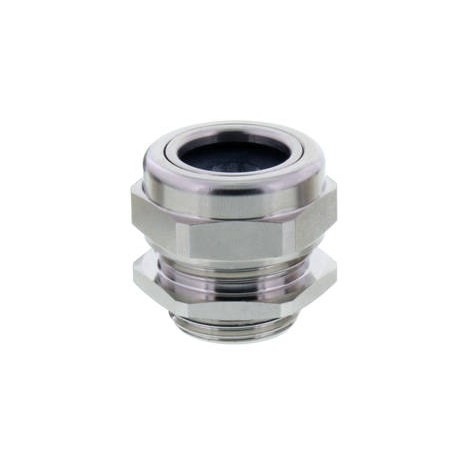

EMCGV 32-150 10106415 WISKA Metal cable glands, IP68, range from 13 to 15mm, thread M32 -40oC/120oC EPDM gas..
$0.00USD
4605 in stock
Key Specifications
Lead (Features):1,5
Type (Features):EMCGV 32-150
Thread type (Features):M
Key width SW (Features):36 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | EMCGV 32-150 |
| Thread type (Features) | M |
| Key width SW (Features) | 36 mm |
| Packing unit (Features) | 25 |
| Temp. range max (Features) | 120 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 24 mm - 28,5 mm |
| Protection class (Features) | IP68 (5 bar 30 min) |
| Collar diameter (E) (Features) | 39 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 15 mm |
| Ø cable diameter min (Features) | 13 mm |
| Ø Connection thread D (Features) | 32 |
| Material sealing gasket (Features) | EPDM |
| Order no. nickel-plated (Features) | 10106415 |
| Length screw-in thread L (Features) | 8 mm |
Product Description
Compression gland, brass nickel-plated, M32
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
