EMBFS-29-40/B

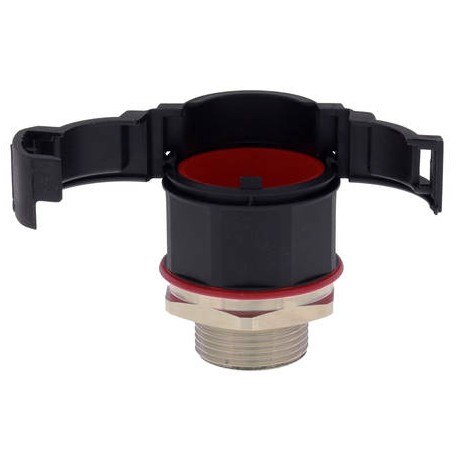

EMBFS-29-40/B 10106904 WISKA IP68 black PA swivel fitting for DN29/34 tube, M40 metal thread
$0.00USD
4427 in stock
Key Specifications
NW (Features):29
Lead (Features):1,5
Type (Features):EMBFS-29-40-BK
UL 1696 (Features):Yes
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| NW (Features) | 29 |
| Lead (Features) | 1,5 |
| Type (Features) | EMBFS-29-40-BK |
| UL 1696 (Features) | Yes |
| Ø inside (Features) | 26 mm |
| Thread type (Features) | M |
| Packing unit (Features) | 10 |
| Key width SW1 (Features) | 41 mm |
| Key width SW2 (Features) | 46 mm |
| Product Color (Features) | RAL 9005 |
| Ø closure VD (Features) | 47,3 mm |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 58,5 mm |
| Protection class (Features) | IP68, IP66 |
| Operational areas (Features) | EN 45545 - Railway |
| Order no. RAL 9005 (Features) | 10106904 |
| ETIM-Classification (Features) | EC001176 |
| Ø Connection thread D (Features) | 40 |
| Material sealing gasket (Features) | TPU |
| Type of conduit fitting (Features) | straight |
| Length screw-in thread L (Features) | 12 mm |
| Material Conduit fitting (Features) | polyamide UL94-V0 |
| Material Connection thread (Features) | Brass nickel-plated |
Product Description
Conduit fitting, straight, plastic/brass nickel-plated, RAL 9005, NW 29 / M40
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
