EM-PB-GATEWAY-IFS

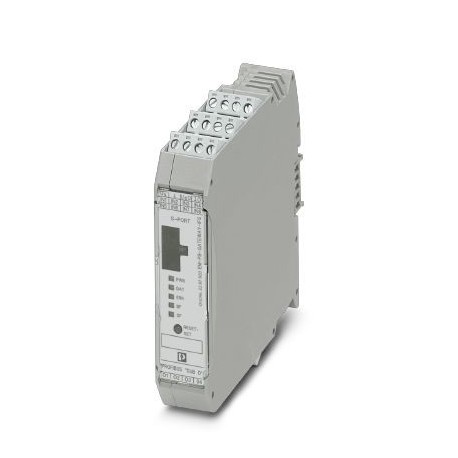

EM-PB-GATEWAY-IFS 2297620 PHOENIX CONTACT Data interface
$0.00USD
4495 in stock
Key Specifications
():Surge protection
GTIN:4046356319652
Orderkey:2297620
Catalog page:Page 16 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | Surge protection |
| GTIN | 4046356319652 |
| Orderkey | 2297620 |
| Catalog page | Page 16 (C-5-2017) |
| Depth (Note) | 114.5 mm |
| Packing unit | 1 pc |
| Width (Note) | 22.5 mm |
| Height (Note) | 99 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85389091 |
| Interface 1 (General) | Interface-System |
| Interface 2 (General) | PROFIBUS DP |
| Protective circuit () | Reverse polarity protection |
| Degree of pollution () | 2 |
| Number (Device supply) | 8 |
| Color (Digital outputs) | gray |
| Number (Digital inputs) | 4 |
| Overvoltage category () | III |
| Standards/regulations () | EN 50178 |
| Connection method (General) | D-SUB-9 |
| Degree of protection (Note) | IP20 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Designation (Digital inputs) | Switching outputs |
| Mounting type (Digital outputs) | DIN rail mounting |
| Screw thread (Serial interface) | M3 |
| Operating mode (Digital outputs) | 100% operating factor |
| Residual voltage (Digital inputs) | 1 V |
| Connection name (Serial interface) | PROFIBUS DP |
| Housing material (Digital outputs) | Polyamide PA non-reinforced |
| Protective circuit (Device supply) | Reverse polarity protection |
| Rated control supply current IS () | 85 mA (plus load current of the outputs) |
| Mounting position (Digital outputs) | any |
| Protective circuit (Digital inputs) | Parallel protection against polarity reversal, pay attention to the fuse |
| Serial transmission speed (General) | 12 Mbps |
| Stripping length (Serial interface) | 8 mm |
| Connection method (Serial interface) | D-SUB |
| Weight per Piece (excluding packing) | 149.610 g |
| Degree of pollution (Digital outputs) | 2 |
| Ambient temperature (operation) (Note) | -35 °C ... 50 °C |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of protection (Digital outputs) | IP20 |
| Number of positions (Serial interface) | 9 |
| Overvoltage category (Digital outputs) | III |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Assembly instructions (Digital outputs) | In rows with zero spacing |
| Max. switching current (Digital inputs) | 500 mA |
| Standards/regulations (Digital outputs) | EN 50178 |
| Number of connections (Serial interface) | 1 |
| Maximum switching voltage (Digital inputs) | 23 V DC (UB- Uresid.of the output) |
| Rated actuating current IC (Device supply) | 3 mA |
| Rated actuating voltage UC (Device supply) | 24 V DC ±20 % |
| Rated control circuit supply voltage US () | 24 V DC -20 % ... +25 % |
| Note on protection circuit (Digital inputs) | Fusing with max. 8 A F-fuse |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Ambient temperature (storage/transport) (Note) | -35 °C ... 80 °C |
| Conductor cross section AWG (Serial interface) | 12 ... 24 |
| Conductor cross section solid (Serial interface) | 0.2 mm² ... 2 mm² |
| Conductor cross section flexible (Serial interface) | 0.2 mm² ... 2.5 mm² |
Product Description
Link gateway for the connection of up to 32 INTERFACE system participants via PROFIBUS DP to a higher-order control system. The INTERFACE system participants are connected via rail bus connectors to t
